Product Detailed Parameters
- Description：CONN HEADER VERT 4POS 2.54MM
- Series：EconoStik™ 10129378
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：4
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.450" (11.43mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

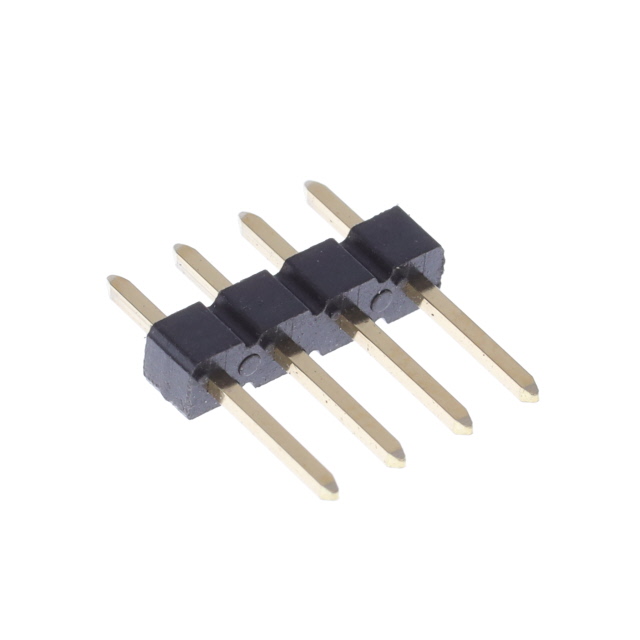

The Amphenol ICC (FCI) part number 10129378-904001BLF is a connector header designed for through-hole mounting. It features a single row with four positions and utilizes a 0.100 inch (2.54mm) pitch for mating connections. The component employs pin strip type contacts, which are male in configuration, to establish reliable electrical pathways. This specific model is packaged in bulk quantities for distribution.
Feature Summary
- Through-hole termination method for secure board attachment
- Single-row header configuration with four contact positions
- Male pin strip contact type for standard mating interfaces
Applications
- Board-to-board interconnection systems
- General electronic circuit assembly
- Industrial control module integration
Procurement Notes
Verify the exact suffix BLF against official manufacturer documentation to confirm plating specifications and material composition. Ensure the ordering quantity aligns with the bulk packaging standards provided by the supplier. Cross-reference the datasheet revision date to guarantee compliance with current environmental regulations and RoHS directives before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, single-row header is required for through-hole applications. The 2.54mm pitch ensures compatibility with standard PCB footprints and mating connectors. Consider the male pin configuration for direct insertion into female sockets or cable assemblies without additional adapters.
Part Context
This component belongs to the EconoStik series of headers manufactured by Amphenol ICC (FCI). The series is characterized by cost-effective solutions for general-purpose interconnect needs. The specific part number indicates a four-position variant within this standardized product line, widely used in commercial electronics.
Replacement Considerations
Direct substitutes include other 4-position, 2.54mm pitch through-hole headers from Amphenol FCI. Verify mechanical dimensions and contact plating requirements before replacing with generic equivalents. Ensure the replacement maintains the same male pin configuration and thermal resistance ratings.
