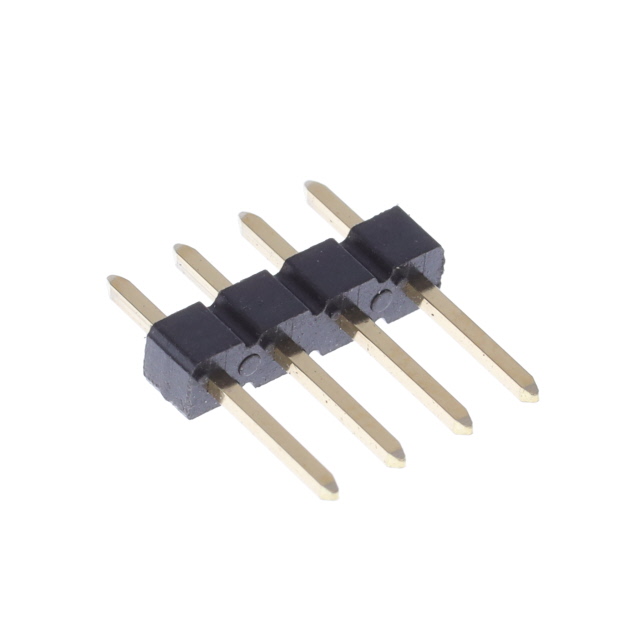

10129378-904002BLF

$0.09

Description：CONN HEADER VERT 4POS 2.54MM
Series：EconoStik™ 10129378
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:38068ca96e7f Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 4POS 2.54MM
Series：EconoStik™ 10129378
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：4
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：0.090" (2.29mm)
Overall Contact Length：0.420" (10.67mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129378-904002BLF

Overview

The Amphenol ICC (FCI) part number 10129378-904002BLF is a single-row, four-position header connector from the Econostik series. It features a 0.100-inch (2.54mm) pitch and is designed for vertical through-hole termination. The component utilizes gold-plated brass contacts to ensure reliable signal transmission. Rated for 3A current with a 600V insulation voltage, it operates within a temperature range of -55°C to +105°C. The housing is constructed from thermoplastic material rated UL 94 V-0 for flammability.

Feature Summary

Vertical through-hole mounting configuration for direct board integration
Gold-plated contact surfaces ensuring corrosion resistance and conductivity
Thermoplastic housing with UL 94 V-0 flammability rating

Applications

Board-to-board interconnections
General electronic equipment internal wiring
Industrial control system modules

Procurement Notes

Verify the specific suffix BLF against official Amphenol documentation to confirm plating specifications and environmental compliance status. Ensure the selected variant matches the required pin count and row configuration for the target PCB layout. Cross-reference the datasheet for precise mechanical dimensions to avoid assembly conflicts.

Selection Notes

Select this component when a low-profile, single-row header is required for vertical mounting. The 2.54mm pitch is standard for general-purpose applications. Consider the 3A current rating and operating temperature limits to ensure compatibility with the system's thermal and electrical requirements during design validation.

Part Context

This connector belongs to the Econostik family, known for cost-effective solutions in high-volume electronics manufacturing. The 10129378 series provides standardized headers for various position counts. As an FCI product, it adheres to industry-standard form factors for easy replacement and supply chain availability in consumer and industrial hardware.
