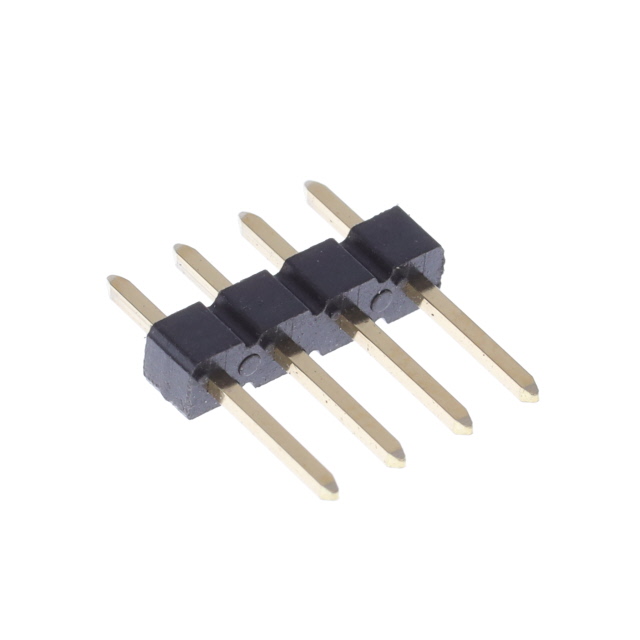

10129378-904003BLF

$0.05

Description：CONN HEADER VERT 4POS 2.54MM
Series：EconoStik™ 10129378
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:c561e518b904 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 4POS 2.54MM
Series：EconoStik™ 10129378
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：4
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.318" (8.08mm)
Contact Length - Post：0.120" (3.05mm)
Overall Contact Length：0.538" (13.67mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129378-904003BLF

Overview

The Amphenol ICC (FCI) part number 10129378-904003BLF is a vertical board-to-board header connector belonging to the EconoStik series. It features a dual-row configuration with four positions and a standard 2.54 mm (0.100 inch) contact pitch. The component utilizes copper alloy contacts and is housed in a thermoplastic shell rated UL 94 V-0 for flammability. Designed for through-hole termination, it supports a current rating of 3 A and withstands voltages up to 1500 V.

Feature Summary

Vertical board-to-board connection architecture
Dual-row header design with four positions
Through-hole termination method

Applications

Data communication equipment
Telecommunications infrastructure
Industrial instrumentation

Procurement Notes

Verify the specific manufacturer part number against official Amphenol FCI documentation to confirm compatibility. Ensure that the required voltage ratings and current handling capabilities align with your circuit design specifications before procurement. Cross-reference datasheets to validate material properties and environmental compliance standards.

Selection Notes

Select this component when a low-profile, vertical interconnect solution is required for board stacking or direct PCB attachment. The 2.54 mm pitch offers broad compatibility with standard manufacturing processes. Evaluate the mechanical stability requirements and thermal management needs to ensure the thermoplastic housing and contact materials meet the operational environment constraints.

Part Context

This component is manufactured by Amphenol ICC (FCI), a division of Amphenol Corporation specializing in high-performance interconnect systems. The EconoStik series provides cost-effective connectivity solutions for various electronic markets. Amphenol FCI focuses on delivering reliable signal and power transmission components for data centers, consumer electronics, and industrial applications globally.
