Product Detailed Parameters

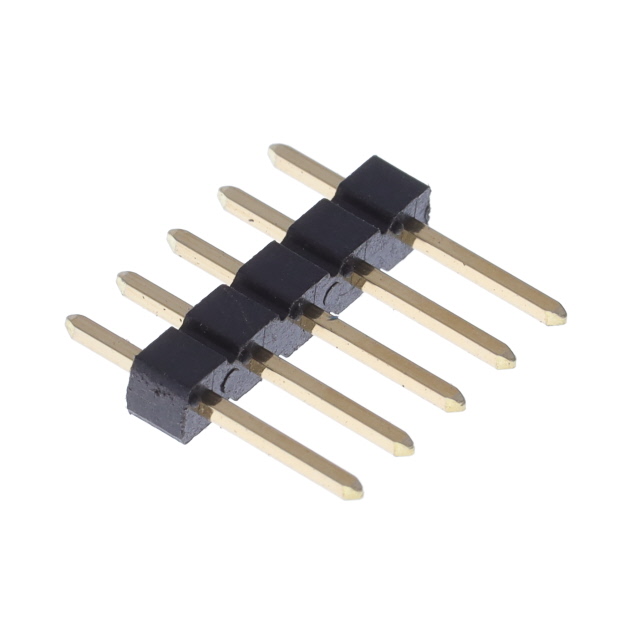

- Description：CONN HEADER VERT 5POS 2.54MM
- Series：EconoStik™ 10129378
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：5
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.450" (11.43mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The 10129378-905001BLF is a board-to-board connector from the Amphenol ICC (FCI) PwrBlade series. It features a single row of five contacts with a 2.54 mm pitch, designed for through-hole straight termination. The component utilizes push-pull fastening and includes an unshrouded header configuration. Rated for 3A current and 300V voltage, it operates within a temperature range of -55°C to 105°C. The housing is black UL94 V-0 rated plastic, while contacts are phosphor bronze with gold or GXT™ plating.
Feature Summary
- Push-pull fastening mechanism for secure mating
- Unshrouded single-row header design
- Gold or GXT™ contact surface treatment
- UL94 V-0 flammability rating
Applications
- Board-to-board interconnections
- Industrial control systems
- Telecommunications equipment
Procurement Notes
Verify the specific suffix against official documentation to confirm exact pin count and orientation. Confirm RoHS compliance status as variations exist within the series. Ensure the selected variant matches the required operating temperature range and current rating for the target application environment before finalizing procurement.
Selection Notes
Select this component when a low-profile, single-row through-hole connection is required. The 2.54 mm pitch suits standard PCB layouts. Consider the push-pull feature if vibration resistance is critical. Verify that the unshrouded design aligns with spatial constraints and mating partner compatibility requirements.
Part Context
This part belongs to the PwrBlade family, known for robust power and signal connectivity solutions. Amphenol ICC acquired FCI, integrating these high-reliability connectors into their portfolio. The series supports various configurations for diverse electronic applications requiring durable board-to-board links.
Replacement Considerations
Check for direct substitutes within the same PwrBlade series with identical pin counts and pitch. Verify mechanical dimensions and electrical ratings match exactly. Consult official cross-reference lists for approved alternative part numbers.
