10129378-905002BLF

Overview

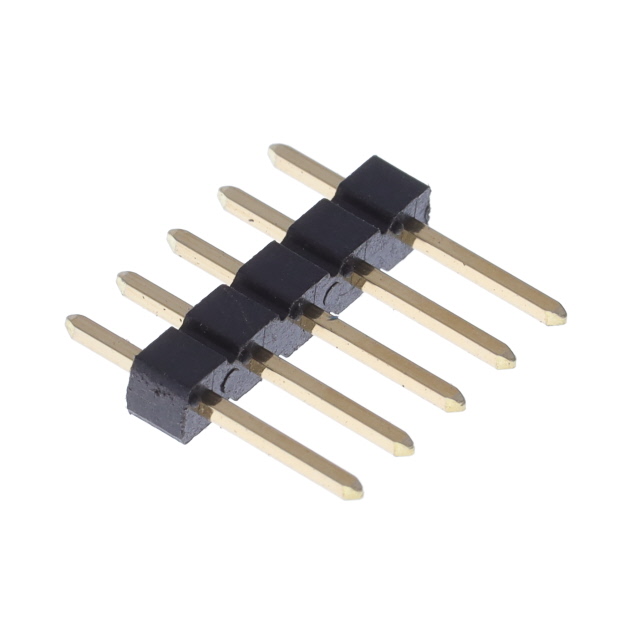

The 10129378-905002BLF is a surface mount header connector manufactured by Amphenol ICC (FCI). It features a single row of five positions with a 0.100-inch (2.54mm) pitch. The contacts are gold-plated copper alloy, rated for 3A current. The housing is black thermoplastic with UL94 V-0 flammability rating. Operating temperature range is -55°C to 105°C.

Feature Summary

• Surface mount design for automated assembly
• Gold contact plating for reliable conductivity
• Thermoplastic insulation with UL94 V-0 rating

Applications

• General electronic interconnects
• Consumer electronics assemblies
• Industrial control boards

Procurement Notes

Verify the specific suffix BLF against official datasheets to confirm material and compliance status. Ensure surface mount footprint compatibility with PCB design. Confirm RoHS3 compliance requirements match project specifications before procurement.

Selection Notes

Select this component for low-profile surface mount applications requiring 2.54mm spacing. Evaluate thermal resistance during soldering against the 105°C maximum operating limit. Consider current derating factors for the 3A rating in enclosed environments.

Part Context

This part belongs to the Amphenol ICC (FCI) header series, designed for board-to-board or board-to-wire connections. It utilizes standard 2.54mm pitch technology common in commercial electronics. The manufacturer provides detailed mechanical drawings and reflow soldering profiles for integration.

Replacement Considerations

Check for direct cross-reference parts from Amphenol ICC with identical pin count and pitch. Verify that alternative suppliers offer matching UL94 V-0 ratings and gold plating thickness. Ensure mechanical height constraints are met by any substitute components.
