Product Detailed Parameters

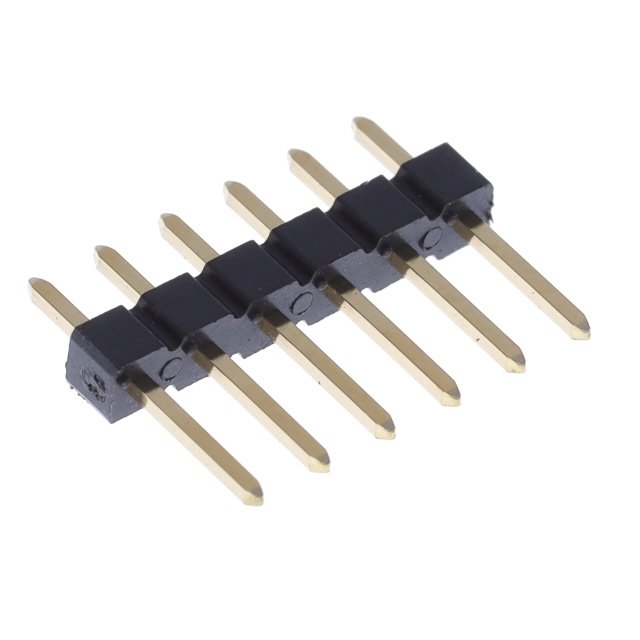

- Description：CONN HEADER VERT 6POS 2.54MM
- Series：EconoStik™ 10129378
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：6
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.450" (11.43mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129378-906001BLF is a rectangular connector header belonging to the EconoStik series. It features a single row of six positions with a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, it utilizes male pins suitable for vertical board-to-board or wire-to-board applications. The unit supports a voltage rating of 110VDC and a current rating of 3A. Operating within a temperature range of -55°C to 105°C, the connector employs UL94 V-0 rated black insulation.
Feature Summary
- Through-hole mounting configuration for secure PCB attachment
- Single-row header design with cuttable form factor
- EconoStik series construction for reliable signal integrity
Applications
- General electronic circuit interconnections
- Industrial control system wiring
- Consumer electronics assembly
Procurement Notes
Verify the specific ordering suffix against official Amphenol documentation to ensure correct pin count and orientation. Confirm that the required contact plating and insulation material meet your environmental standards. Cross-reference the datasheet for precise footprint dimensions before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, single-row header is required for through-hole implementation. Ensure the mating device matches the 2.54mm pitch specification. Consider the 3A current rating and 110VDC limit during electrical design validation to guarantee safe operational margins under load conditions.
Part Context
This component is part of the broader Amphenol FCI portfolio, acquired by Amphenol Corporation in 2016. The EconoStik line focuses on cost-effective solutions for high-volume manufacturing. It serves as a standard interconnect solution within the company's extensive catalog of rectangular connectors and headers.
Replacement Considerations
Compatible substitutes include other 6-position, 2.54mm pitch through-hole headers from Amphenol ICC (FCI), such as the 10129378-916001BLF variant. Verify mechanical compatibility and electrical ratings before substituting.
