Product Detailed Parameters

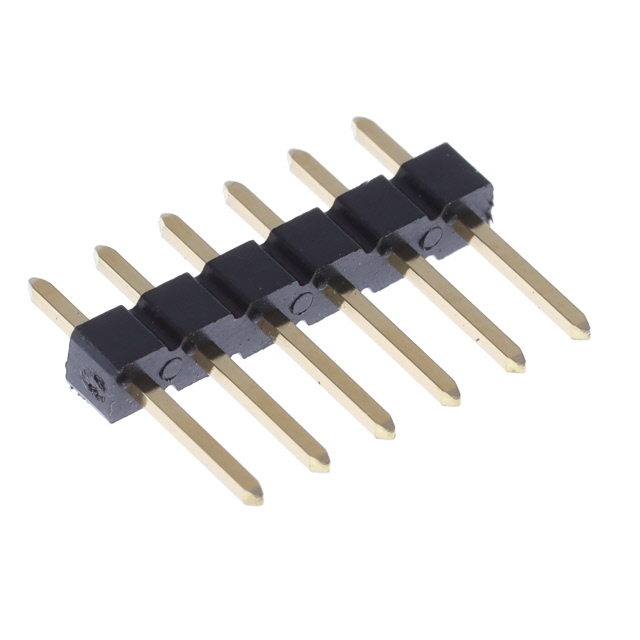

- Description：CONN HEADER VERT 6POS 2.54MM
- Series：EconoStik™ 10129378
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：6
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：0.420" (10.67mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129378-906002BLF is a general-purpose interconnect component designed for industrial, medical, and telecommunications applications. It features a maximum operating temperature of +105°C and utilizes copper alloy contacts. The connector is rated for a current of 3A and a voltage of 110VDC. It is supplied in bulk packaging.
Feature Summary
- Copper alloy contact material ensures reliable electrical conductivity
- Rated for high-temperature operation up to +105°C
- Designed for general-purpose connectivity across multiple industries
Applications
- Industrial equipment interconnection
- Medical device signal transmission
- Telecommunications infrastructure components
Procurement Notes
Verify the specific suffix BLF against official Amphenol documentation to confirm exact plating and material specifications. Ensure compatibility with mating connectors regarding the 3A current rating and 110VDC voltage limits. Confirm bulk packaging requirements align with assembly line needs before finalizing orders.
Selection Notes
Select this component for applications requiring robust performance in industrial, medical, or telecommunications environments. The 3A per contact rating supports standard power and signal loads. Verify that the +105°C thermal limit meets the operational temperature constraints of the target system design.
Part Context
This component belongs to the Amphenol ICC (FCI) portfolio, formerly Framatome Connectors International. FCI was acquired by Amphenol in 2016 and continues to provide interconnect solutions for data processing and communication markets under the Amphenol ICC brand.
Replacement Considerations
Cross-reference with similar general-purpose connectors from the same series if availability is an issue. Ensure any substitute maintains the 3A current rating and +105°C temperature capability.
