Product Detailed Parameters

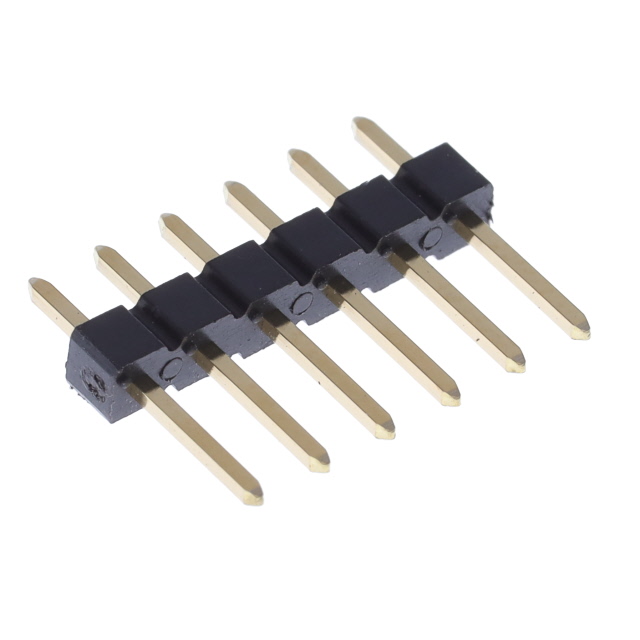

- Description：CONN HEADER VERT 6POS 2.54MM
- Series：EconoStik™ 10129378
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：6
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：0.508" (12.90mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129378-906004BLF is a rectangular connector header designed for through-hole mounting. It features six positions with a 0.100-inch (2.54mm) pitch. The contacts are constructed from copper alloy and terminate via vertical pin configuration. This component utilizes thermoplastic insulation materials to ensure structural integrity and electrical isolation within the assembly.
Feature Summary
- Through-hole mounting style for secure PCB attachment
- Six-position layout with standard 2.54mm spacing
- Copper alloy contact construction for conductivity
Applications
- General electronic circuit interconnections
- Industrial control system wiring
- Consumer electronics board-to-board connections
Procurement Notes
Verify that the specific suffix BLF matches the required lead frame and plating specifications for your design. Confirm the thermoplastic insulation material aligns with thermal requirements. Ensure the vertical header orientation fits the mechanical constraints of the final enclosure. Cross-reference the manufacturer datasheet for precise dimensional tolerances before finalizing the bill of materials.
Selection Notes
Select this component when a low-profile, six-pin vertical header is required for through-hole applications. The 2.54mm pitch ensures compatibility with standard breadboards and ribbon cables. Consider the copper alloy contact material for reliable signal transmission in general-purpose environments where high-frequency performance is not the primary constraint.
Part Context
This part belongs to the broader family of Amphenol ICC rectangular connectors. These components are widely used across various sectors including industrial automation and consumer electronics. The manufacturer provides standardized solutions for reliable interconnectivity, ensuring consistent performance across different product lines and manufacturing batches.
Replacement Considerations
Direct substitutes must maintain the 6-position count, 2.54mm pitch, and through-hole termination method. Verify that any alternative header uses compatible thermoplastic insulation and copper alloy contacts. Ensure the vertical height and footprint match the existing PCB layout to avoid mechanical interference during assembly.
