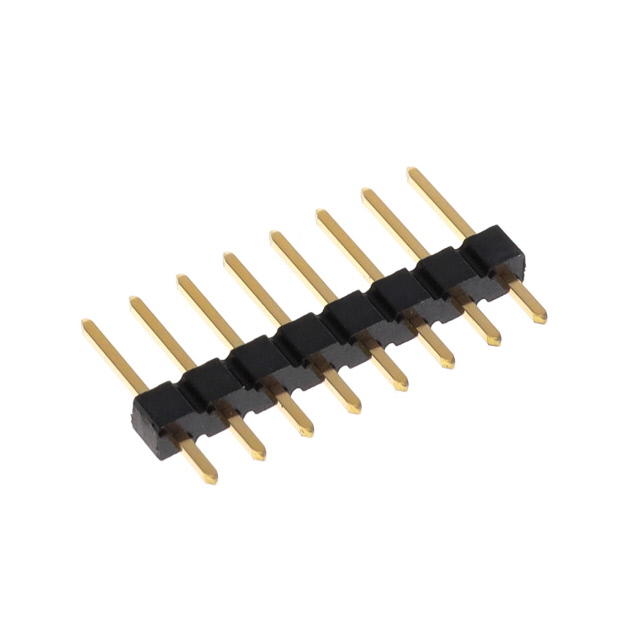

10129378-908001BLF

$0.14

Description：CONN HEADER VERT 8POS 2.54MM
Series：EconoStik™ 10129378
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:50dc6272d3ac Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 8POS 2.54MM
Series：EconoStik™ 10129378
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：8
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：0.120" (3.05mm)
Overall Contact Length：0.450" (11.43mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129378-908001BLF

Overview

The Amphenol ICC (FCI) part number 10129378-908001BLF is an EconoStik series header connector designed for through-hole mounting. It features a single row of eight positions with a vertical orientation and a 2.54mm (0.100 inch) pitch. The housing is constructed from thermoplastic material, rated for operating temperatures between -55°C and +105°C. Contact finishes include a mating thickness of 1.00µin (0.025µm), utilizing copper alloy contacts to ensure reliable signal transmission in standard electronic applications.

Feature Summary

Vertical through-hole design for direct PCB integration
EconoStik series construction for cost-effective connectivity
Thermoplastic insulation supporting wide temperature ranges

Applications

General-purpose electronic circuit interconnections
Consumer electronics assembly
Industrial control board connections

Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to confirm pin count, contact finish, and packaging type. Ensure the selected variant matches the required voltage rating and current capacity for the target application. Cross-reference the full part number with manufacturer datasheets to avoid substitution errors due to minor specification differences.

Selection Notes

Select this component when a low-profile, single-row vertical header is required for through-hole PCB assembly. The 2.54mm pitch is standard for general wiring needs. Consider the EconoStik series benefits for budget-conscious designs requiring reliable signal integrity without complex locking mechanisms or high-current capabilities.

Part Context

This connector belongs to the Amphenol ICC (FCI) EconoStik family, a line of rectangular headers known for durability and ease of use. FCI, now part of Amphenol, provides extensive interconnect solutions for data communication and commercial electronics. This specific model represents a standard vertical header configuration within their broad portfolio of board-to-wire solutions.
