10129378-908002BLF

Overview

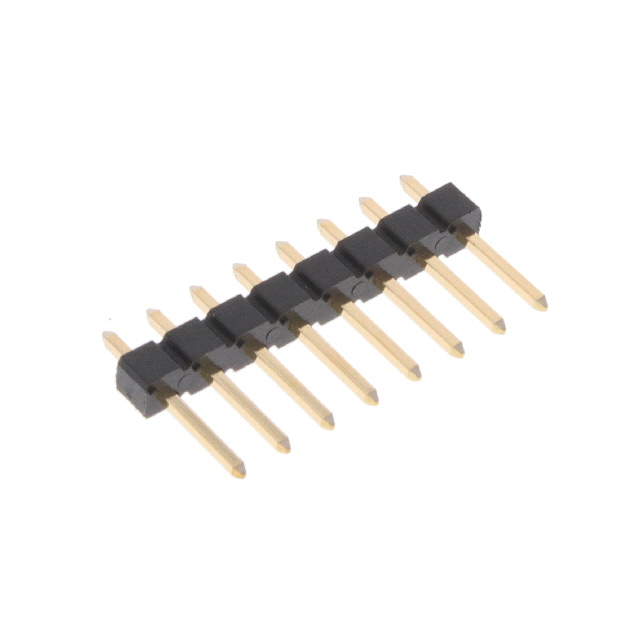

The Amphenol ICC (FCI) part number 10129378-908002BLF is a rectangular connector header designed for through-hole mounting. It features an 8-position configuration with a vertical orientation and a 0.100-inch (2.54mm) pin spacing. The component utilizes copper alloy contacts and meets the UL 94 V-0 flammability rating, ensuring compliance with safety standards for electronic assemblies.

Feature Summary

• Vertical through-hole header design for standard PCB integration
• Copper alloy contact material for reliable electrical conductivity
• UL 94 V-0 rated housing for fire safety compliance

Applications

• General-purpose electronic circuit board interconnections
• Signal transmission in consumer electronics assemblies
• Industrial control panel wiring interfaces

Procurement Notes

Verify the specific suffix BLF against the manufacturer's current datasheet to confirm plating specifications and material composition. Ensure the vertical header style matches the mechanical constraints of the target printed circuit board layout before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, vertically oriented header is required for signal lines. The 2.54mm pitch accommodates standard wire gauges. Confirm that the 3A current rating aligns with the operational load requirements of the connected circuits to prevent thermal issues.

Part Context

This connector belongs to the broader family of Amphenol ICC (FCI) rectangular headers. These components are widely utilized in information technology and communication equipment to provide secure, standardized connections between cables and circuit boards within compact electronic enclosures.

Replacement Considerations

Cross-reference with other 8-position, 2.54mm pitch vertical headers from Amphenol or third-party manufacturers. Verify identical mechanical dimensions, contact plating, and flammability ratings to ensure functional interchangeability without redesigning the host assembly.
