Product Detailed Parameters
- Description：CONN HEADER VERT 8POS 2.54MM
- Series：EconoStik™ 10129378
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.538" (13.67mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

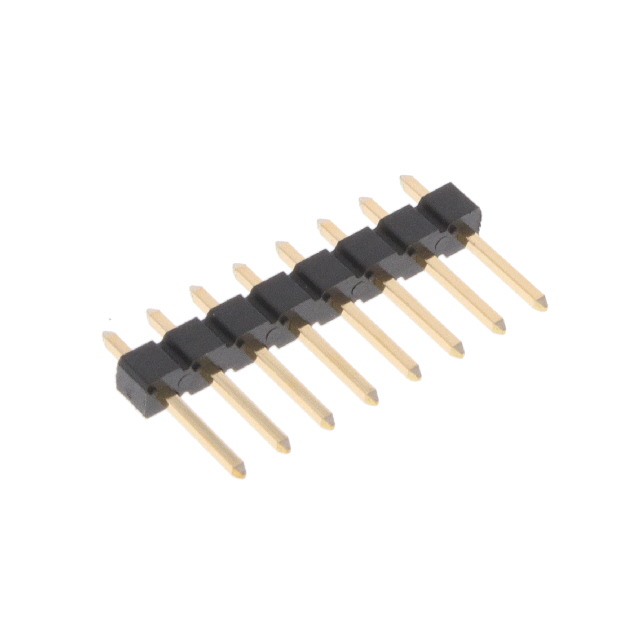

The Amphenol ICC (FCI) part number 10129378-908003BLF is a vertical board-to-board header connector belonging to the Econostik series. It features an 8-position configuration with a 2.54 mm (0.100 inch) pin spacing and operates as a single-row assembly. The component utilizes through-hole termination for secure PCB mounting. Electrical specifications include a current rating of 3A and a voltage rating of 110VDC. The housing material exhibits UL94 V-0 flammability ratings, while the insulation color is black. The operational temperature range spans from -55°C to 105°C.
Feature Summary
- Vertical orientation design facilitates direct surface mounting on printed circuit boards.
- Econostik series construction provides reliable signal transmission in standard environments.
- Through-hole termination ensures robust mechanical stability during operation.
Applications
- Industrial instrumentation equipment
- Consumer electronics assemblies
- General-purpose data communication hardware
Procurement Notes
Verify the specific suffix BLF against official manufacturer documentation to confirm plating and packaging details. Ensure compatibility with mating receptacles within the same Econostik family. Cross-reference the datasheet for updated environmental compliance status prior to final procurement decisions.
Selection Notes
Select this component when a low-profile, single-row vertical header is required for 2.54mm pitch applications. Confirm that the 3A current rating and 110VDC voltage limits align with the target circuit requirements. Validate that the through-hole footprint matches the intended PCB layout constraints.
Part Context
This connector belongs to the Econostik product line by Amphenol ICC (FCI), designed for cost-effective interconnect solutions. The series targets high-volume manufacturing environments requiring standardized board-to-board connections. It serves as a fundamental building block for various electronic assemblies where reliability and ease of assembly are prioritized.
Replacement Considerations
Compatible substitutes include other Econostik headers with identical 2.54mm pitch, 8 positions, and vertical orientation. Verify mechanical dimensions and terminal type before substitution to ensure proper fit and function.
