10129378-909001BLF

Overview

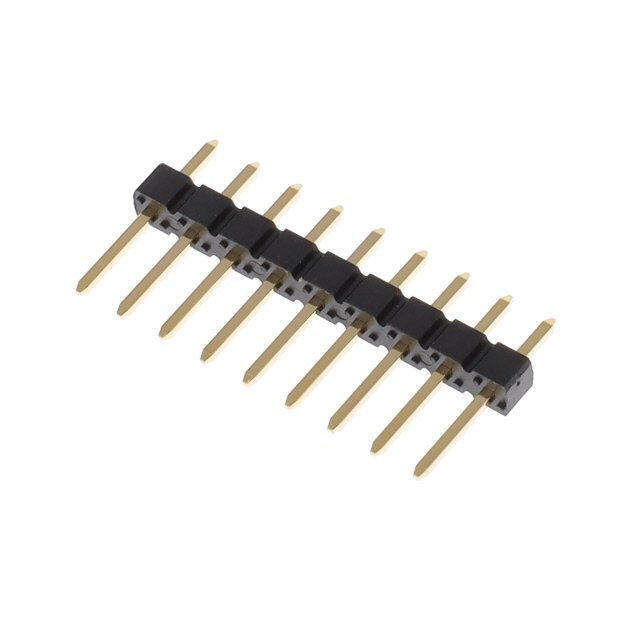

The Amphenol ICC (FCI) part number 10129378-909001BLF is a vertical connector header designed for through-hole termination. It features a 9-position contact layout with a 0.100-inch (2.54mm) pitch. The housing is black and constructed from material rated UL 94 V-0 for flammability. The component operates within a temperature range of -55°C to 105°C and has a voltage rating of 110VDC. Maximum operating current is specified at 3A, with a maximum operating temperature of 55°C under load conditions.

Feature Summary

• Vertical board-to-board or cable-to-board interconnect design
• Through-hole solder termination for secure PCB mounting
• Male pin contact configuration for mating compatibility
• UL 94 V-0 flammability rating for safety compliance

Applications

• Industrial control systems
• Consumer electronics assemblies
• General purpose circuit boards
• Instrumentation equipment

Procurement Notes

Verify the exact pin count and pitch against the original design schematic before procurement. Confirm that the 110VDC voltage rating and 3A current capacity meet the specific circuit requirements. Ensure the through-hole footprint matches the target printed circuit board layout. Check for any RoHS compliance status updates if environmental regulations apply to the final assembly.

Selection Notes

Select this component when a low-profile vertical header is required for 2.54mm pitch applications. Consider the 3A current rating for power distribution needs within the limit. Evaluate the 110VDC insulation capability for appropriate signal isolation. Ensure the manufacturing process supports standard through-hole wave or selective soldering techniques for reliable attachment.

Part Context

This component belongs to the broader family of Amphenol ICC (FCI) interconnect solutions. It serves as a standard passive connection point in electronic assemblies. The manufacturer provides extensive catalog support for related series. Designers often use this type of header for prototyping or fixed wiring connections where flexibility is not required.

Replacement Considerations

Direct substitutes must match the 9-pin count, 2.54mm pitch, and vertical orientation. Verify that alternative headers maintain the same UL 94 V-0 rating and current handling capabilities. Cross-reference the mechanical dimensions to ensure proper fit within the enclosure. Consult the manufacturer's obsolescence notices for recommended upgrades.
