Product Detailed Parameters

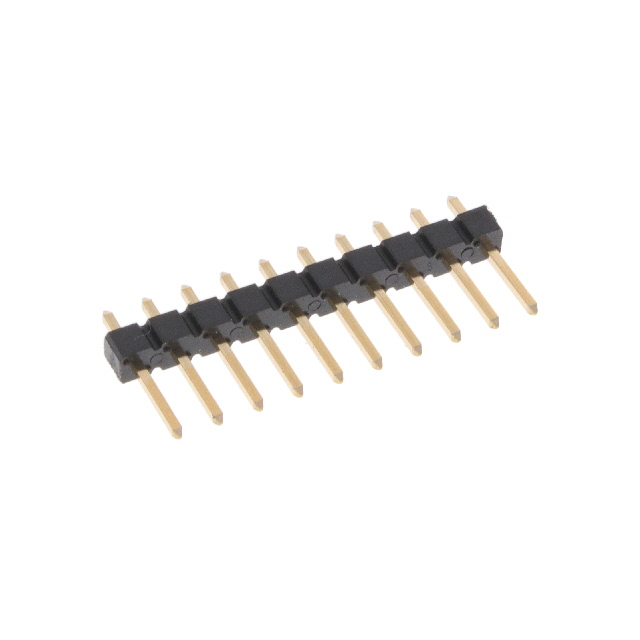

- Description：CONN HEADER VERT 10POS 2.54MM
- Series：EconoStik™ 10129378
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：10
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：0.420" (10.67mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129378-910002BLF is a vertical board-to-board header connector belonging to the Econostik series. It features a single row of ten contacts with a 2.54 mm pitch, designed for through-hole mounting. The connector utilizes copper alloy contacts and black insulation material rated UL 94 V-0 for flammability. Electrical specifications include a current rating of 3 A and a voltage rating of 110 VDC. Additional performance metrics specify a maximum contact resistance of 20 mOhm and an insulation resistance of 1000 MOhm.
