Product Detailed Parameters
- Description：CONN HEADER VERT 10POS 2.54MM
- Series：EconoStik™ 10129378
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：10
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.538" (13.67mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

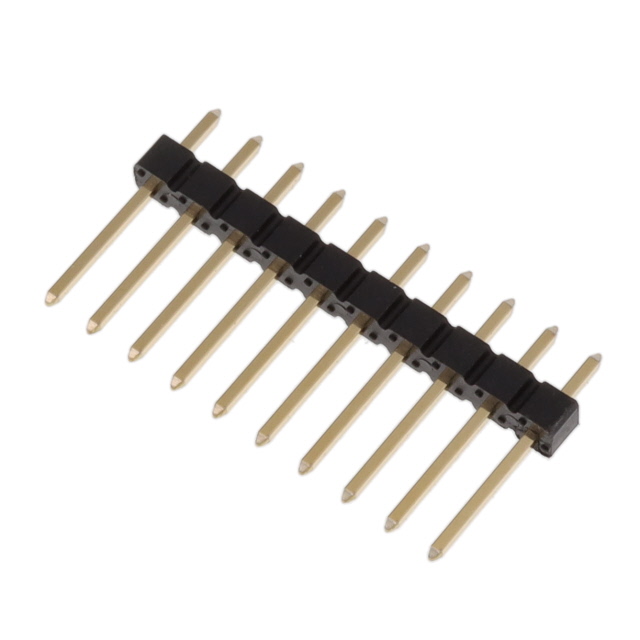

The Amphenol ICC (FCI) 10129378-910003BLF is a straight header connector from the EconoStik™ series, designed for board-to-board applications. It features a 2.54mm terminal pitch and supports up to 50 mating cycles. The unit provides a maximum current rating of 3A and a voltage rating of 110VDC, with an insulation resistance of 1000 MOhm. The body orientation is straight, and it is suitable for industrial control and test environments.
Feature Summary
- EconoStik™ series construction supporting up to 50 mating cycles
- Straight body orientation for standard board-to-board integration
- High insulation resistance of 1000 MOhm for reliable signal integrity
Applications
- Industrial control systems
- Test equipment interfaces
- General purpose electronic assemblies
- Medical device connections
Procurement Notes
Verify component authenticity through authorized distribution channels. Confirm that the specific part number matches the required straight header configuration and EconoStik™ series specifications. Ensure compliance with relevant environmental standards prior to integration into final assemblies.
Selection Notes
Select this connector when a straight header with 2.54mm pitch is required for general-purpose or industrial applications. Consider the 3A current rating and 110VDC voltage limit against system requirements. Evaluate the 50-cycle mating durability against expected maintenance frequencies.
Part Context
This component belongs to the EconoStik™ family of headers manufactured by Amphenol ICC (FCI). The series is characterized by cost-effective solutions for standard interconnect needs. The 10129378-910003BLF variant specifically offers straight mounting geometry for vertical PCB insertion.
Replacement Considerations
Cross-reference with other Amphenol ICC EconoStik™ headers sharing identical 2.54mm pitch and straight orientation. Verify mechanical footprint compatibility and electrical ratings before substituting with alternative part numbers.
