Product Detailed Parameters
- Description：CONN HEADER VERT 10POS 2.54MM
- Series：EconoStik™ 10129378
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：10
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：0.508" (12.90mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

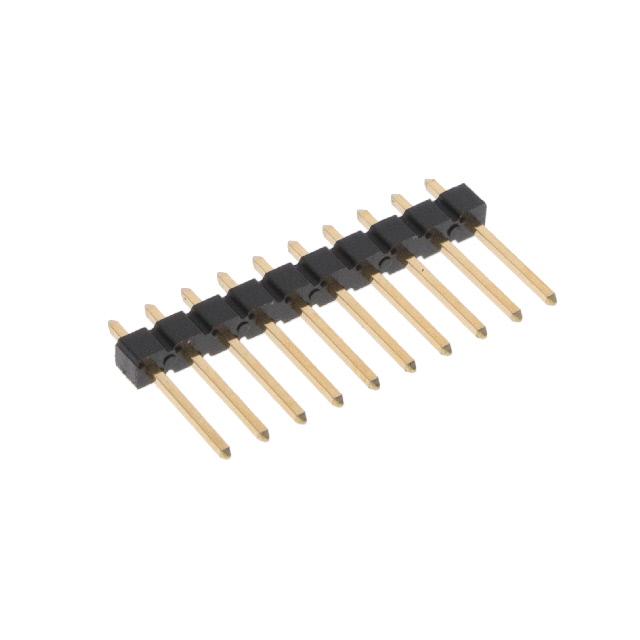

The Amphenol ICC (FCI) 10129378-910004BLF is a single-row pin header from the Econostik series, designed for board-to-board interconnections. It features 10 positions with a 2.54 mm pitch and utilizes through-hole straight termination. The connector employs gold-plated brass contacts housed in black thermoplastic insulation rated UL94 V-0. It supports an operating temperature range of -55°C to 105°C and carries a current rating of 3A.
Feature Summary
- Single-row configuration for compact board-to-board mounting
- Gold-plated brass contacts ensure reliable signal transmission
- Thermoplastic housing provides UL94 V-0 flammability rating
- Through-hole straight termination facilitates standard PCB assembly
Applications
- General purpose electronic circuits
- Industrial control systems
- Medical equipment interfaces
- Telecommunications hardware
Procurement Notes
Verify the specific ordering suffix against the manufacturer's latest datasheet to confirm contact plating thickness and material specifications. Ensure the selected variant matches the required row count and pitch for your design. Cross-reference the base product number 10129378 with official Amphenol documentation to validate compatibility with mating pins.
Selection Notes
Select this component when a single-row, 10-position header is required for low-voltage signal or power distribution. The 2.54 mm pitch aligns with standard prototyping and industrial layouts. Consider the 3A current rating and 105°C thermal limit for circuit requirements. The straight through-hole style suits vertical mounting orientations on printed circuit boards.
Part Context
This part belongs to the FCI Econostik family, a widely used line of general-purpose connectors acquired by Amphenol. The series emphasizes cost-effective solutions for mass-market electronics. The 10129378 base model denotes a single-row header, distinguishing it from multi-row variants within the same product ecosystem.
Replacement Considerations
Compatible substitutes include the 10129378-910004BLF equivalents from authorized distributors. Verify that replacement headers maintain the 2.54 mm pitch and 10-position count. Ensure mating pin dimensions match the original specification for proper insertion force and retention.
