10129378-916001BLF

Overview

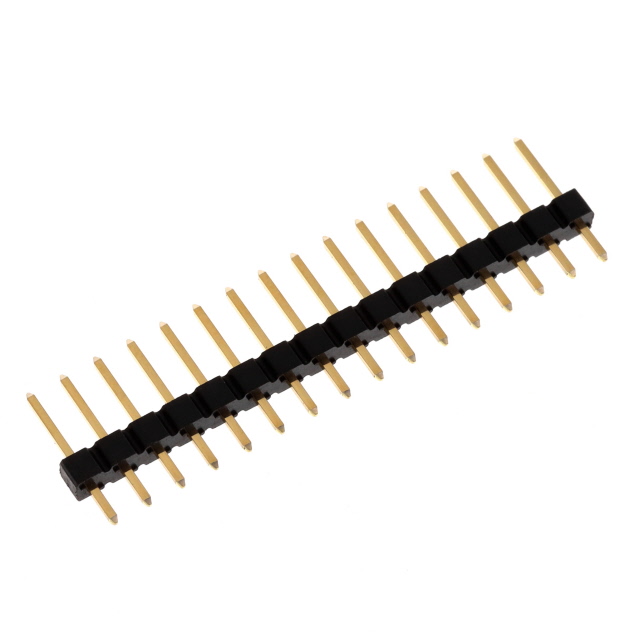

The Amphenol ICC (FCI) part number 10129378-916001BLF is a vertical board-to-board header connector. It features a single row with 16 contacts and a 2.54 mm pitch. The component utilizes through-hole straight termination for secure PCB mounting. Contact material is copper alloy, rated for 3 A current. The housing meets UL 94 V-0 flammability standards.

Feature Summary

• Vertical board-to-board interconnection design
• Through-hole straight termination method
• Single row configuration with cuttable format

Applications

• General electronic circuit interconnections
• Industrial control systems
• Consumer electronics assemblies

Procurement Notes

Verify the exact suffix BLF against official datasheets to confirm plating and packaging specifications. Ensure compatibility with mating receptacles regarding pin count and pitch. Confirm RoHS compliance status for specific regional regulatory requirements before final procurement decisions.

Selection Notes

Select this component when a low-profile vertical header is required for signal or power distribution. The 2.54 mm pitch ensures broad compatibility with standard PCB layouts. Verify that the 3 A current rating aligns with the application's electrical load requirements.

Part Context

This connector belongs to the standard rectangular header family from Amphenol ICC (FCI). It serves as a fundamental passive interconnect element within larger assembly structures. The design prioritizes mechanical stability and reliable electrical contact in dense board-to-board scenarios.

Replacement Considerations

Direct substitutes must match the 16-pin count, 2.54 mm pitch, and vertical orientation. Verify identical termination style and current ratings. Cross-reference manufacturer-specific series codes for equivalent performance characteristics.
