10129378-916003BLF

Overview

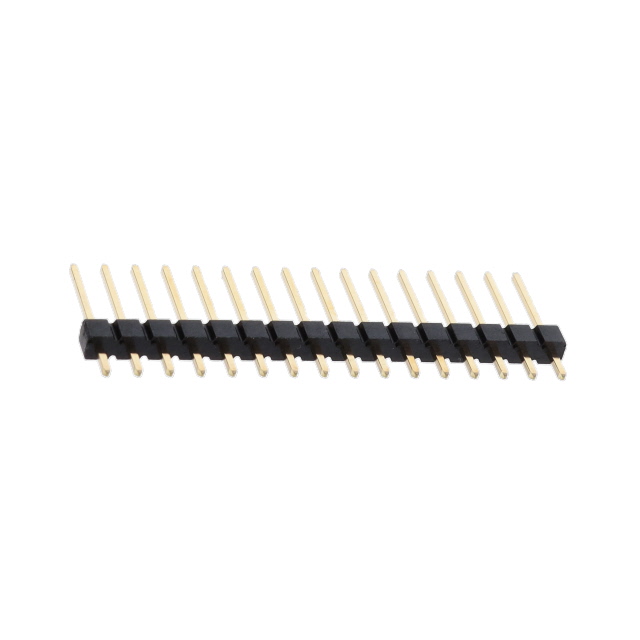

The Amphenol ICC (FCI) part number 10129378-916003BLF is a vertical header connector from the EconoStik series. It features 16 positions with a 0.100-inch (2.54mm) pitch. The connector utilizes through-hole termination and is designed for board-to-board applications. Contact surfaces are finished with tin plating to ensure reliable electrical connections.

Feature Summary

• Vertical orientation design for standard board stacking
• EconoStik series construction supporting up to 50 mating cycles
• Through-hole solder termination for secure PCB mounting

Applications

• Industrial control systems
• Test equipment assemblies
• General board-to-board interconnections

Procurement Notes

Verify the specific suffix BLF against the manufacturer's current datasheet to confirm material composition and plating specifications. Ensure the selected variant matches the required pin count and orientation for the target PCB layout. Confirm RoHS compliance status if restricted substances are prohibited in the final assembly process.

Selection Notes

Select this component when a low-cost, vertical header solution is required for moderate-duty interconnects. The 2.54mm pitch allows compatibility with standard through-hole footprints. Consider the 50-cycle mating limit when evaluating long-term mechanical durability requirements for the specific application environment.

Part Context

This connector belongs to the EconoStik family, which provides cost-effective rectangular interconnect solutions. The series is engineered for high-volume manufacturing and general-purpose electronic assemblies. It offers a balance of performance and affordability for non-critical signal and power distribution tasks.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
