Product Detailed Parameters

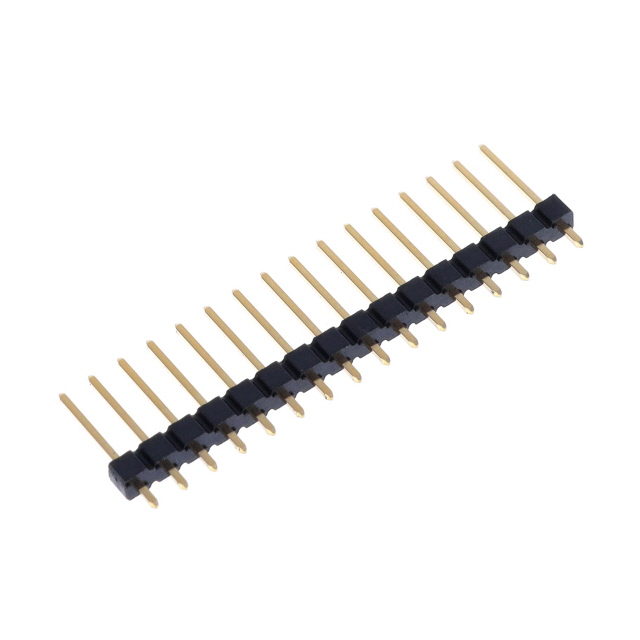

- Description：CONN HEADER VERT 16POS 2.54MM
- Series：EconoStik™ 10129378
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：16
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：0.508" (12.90mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129378-916004BLF is a header connector belonging to the EconoStik series. It features a dual-row configuration with 48 positions arranged in a 2x24 layout. The connector utilizes a 2.54 mm pitch and incorporates right-angle through-hole termination for board mounting. Contact surfaces are gold-plated brass pins designed for reliable signal transmission. The housing is constructed from black thermoplastic material rated UL 94 V-0 for flammability. Electrical specifications include a current rating of 3 A and an operating temperature range spanning from -55°C to +105°C.
Feature Summary
- Right-angle through-hole mounting design facilitates vertical board-to-board connections.
- Gold-plated pin contacts ensure stable electrical performance and corrosion resistance.
- Thermoplastic housing provides structural integrity with UL 94 V-0 flammability rating.
Applications
- Board-to-board interconnection
- Industrial instrumentation systems
- Factory automation equipment
Procurement Notes
Verify the specific suffix codes against official manufacturer documentation to confirm exact mechanical dimensions and plating thickness. Confirm RoHS compliance status and moisture sensitivity level prior to procurement. Ensure compatibility with mating socket connectors regarding row spacing and pin alignment. Request updated lifecycle status to verify availability and production continuity.
Selection Notes
Select this component when a low-profile, cost-effective solution is required for high-density power or signal routing. The 2.54 mm pitch offers broad compatibility with standard PCB layouts. Evaluate thermal requirements against the specified operating temperature limits. Consider the right-angle form factor for space-constrained vertical assembly orientations.
Part Context
This component belongs to the EconoStik product family, which focuses on economical interconnect solutions for general electronic applications. The series emphasizes robust mechanical design combined with competitive pricing. It serves as a standard header option within Amphenol's broader portfolio of rectangular connectors.
Replacement Considerations
Direct substitutes require matching the 2x24 pin count, 2.54 mm pitch, and right-angle through-hole termination. Verify that alternative headers maintain identical housing height and contact plating specifications to ensure mechanical fit and electrical reliability.
