Product Detailed Parameters
- Description：CONN HEADER VERT 20POS 2.54MM
- Series：EconoStik™ 10129378
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：20
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.450" (11.43mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

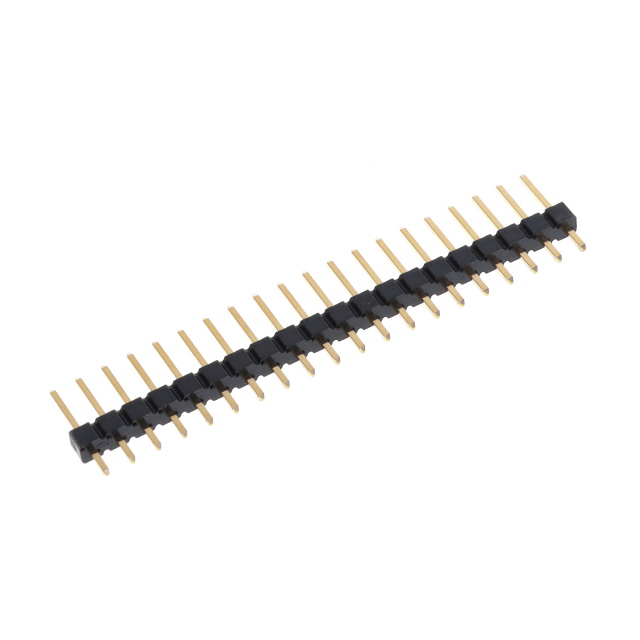

The Amphenol ICC (FCI) 10129378-920001BLF is a vertical header connector from the EconoStik series. It features 20 positions with a 2.54 mm pitch and single row configuration. The component utilizes brass contacts with gold plating, rated for 3 A current and 110 VDC voltage. Designed for through-hole right-angle mounting, it operates within a temperature range of -55°C to +105°C. The housing is black thermoplastic with UL 94 V-0 flammability rating.
Feature Summary
- Vertical board-to-board connection capability
- Gold-plated brass contact system for reliable conductivity
- Thermoplastic housing with UL 94 V-0 flame retardancy
Applications
- Board-to-board interconnection
- General electronic circuit assembly
- Industrial control systems
Procurement Notes
Verify the specific part number against official Amphenol FCI documentation to confirm current availability and manufacturing status. Ensure compatibility with target PCB footprint and mating connector specifications before procurement. Cross-reference datasheet revisions for any design changes.
Selection Notes
Select this component when a vertical, single-row header with 2.54 mm spacing is required. Confirm that the 3 A current rating and 110 VDC voltage limit meet circuit requirements. Verify that the through-hole mounting style and right-angle orientation align with mechanical constraints.
Part Context
This part belongs to the EconoStik family of rectangular connectors manufactured by Amphenol ICC (FCI). The series provides standard pin strip solutions for general-purpose electronics. The specific model denotes a 20-position vertical header variant within this established product line.
Replacement Considerations
Consult official Amphenol FCI substitution guides for verified equivalent parts. Generic replacements may not match exact dimensional or electrical specifications.
