10129378-920003BLF

Overview

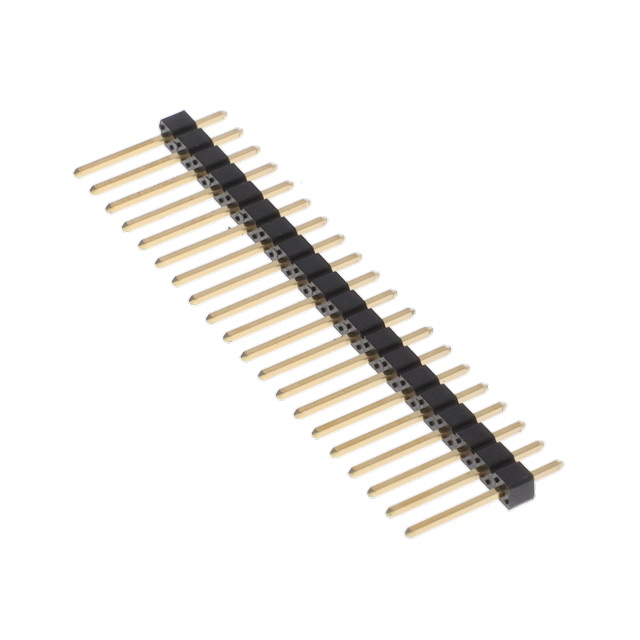

The Amphenol ICC (FCI) part number 10129378-920003BLF is a header connector from the Econostik series. It features a single row with twenty positions and a vertical orientation for through-hole mounting. The contact pitch measures 2.54 mm, providing standard spacing for board-to-wire applications. Rated at 3 A current and 600 V voltage, it utilizes copper alloy contacts with tin plating. The housing is constructed from thermoplastic material.

Feature Summary

• Vertical through-hole termination method
• Single-row pin header configuration
• Thermoplastic housing construction

Applications

• General purpose electronic interconnects
• Industrial control systems
• Consumer electronics assemblies

Procurement Notes

Verify the specific suffix BLF against official datasheets to confirm lead-free compliance and material specifications. Ensure the ordering quantity matches manufacturer packaging standards. Confirm that the vertical header design aligns with PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when a vertical, single-row connection is required. The 2.54 mm pitch suits standard prototyping and production boards. Verify that the 3 A rating meets circuit load demands. Consider mechanical retention needs for through-hole assembly processes during selection.

Part Context

This connector belongs to the Econostik family, designed for cost-effective general-purpose connections. The series offers reliable performance across various industrial and commercial environments. It provides a standardized interface solution for manufacturers requiring robust board-to-wire connectivity.

Replacement Considerations

Consult official cross-reference lists for verified substitutes. Generic equivalents may differ in contact plating or housing flammability ratings. Validate dimensional compatibility before substituting.
