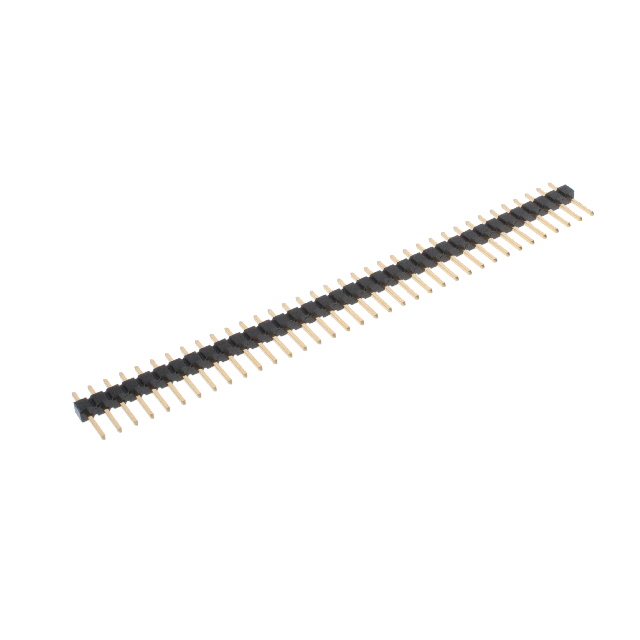

10129378-936001BLF

$0.48

Description：CONN HEADER VERT 36POS 2.54MM
Series：EconoStik™ 10129378
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:08e28bdae01e Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 36POS 2.54MM
Series：EconoStik™ 10129378
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：36
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：0.120" (3.05mm)
Overall Contact Length：0.450" (11.43mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129378-936001BLF

Overview

The Amphenol ICC (FCI) part number 10129378-936001BLF is a rectangular connector header designed for through-hole mounting. It features a single row with 36 positions and a mating pitch of 0.100 inches (2.54mm). The overall contact length measures 0.450 inches (11.43mm). This component operates within a temperature range of -55°C to 105°C.

Feature Summary

Through-hole termination method ensures secure board attachment.
Single-row configuration supports standard density layouts.

Applications

General electronic interconnects
Industrial control systems
Telecommunications equipment

Procurement Notes

Verify the specific suffix BLF against official datasheets to confirm plating and material specifications. Confirm availability status as distribution data may vary. Ensure compatibility with mating receptacles regarding pitch and row count before integration into design projects.

Selection Notes

Select this component when a single-row, 36-position header with 2.54mm spacing is required. Verify that the operating temperature range of -55°C to 105°C meets environmental requirements. Ensure the through-hole package style aligns with the target PCB manufacturing capabilities.

Part Context

This connector belongs to the broader family of rectangular headers produced by Amphenol ICC (FCI). These components are engineered for reliable signal transmission in various commercial and industrial applications. The manufacturer provides standardized dimensions to facilitate interoperability with compatible mating connectors.

Replacement Considerations

Direct substitutes must match the 36-position count, 2.54mm pitch, and single-row layout. Verify identical mechanical dimensions and electrical ratings. Cross-reference with other manufacturers offering equivalent through-hole header specifications.
