Product Detailed Parameters

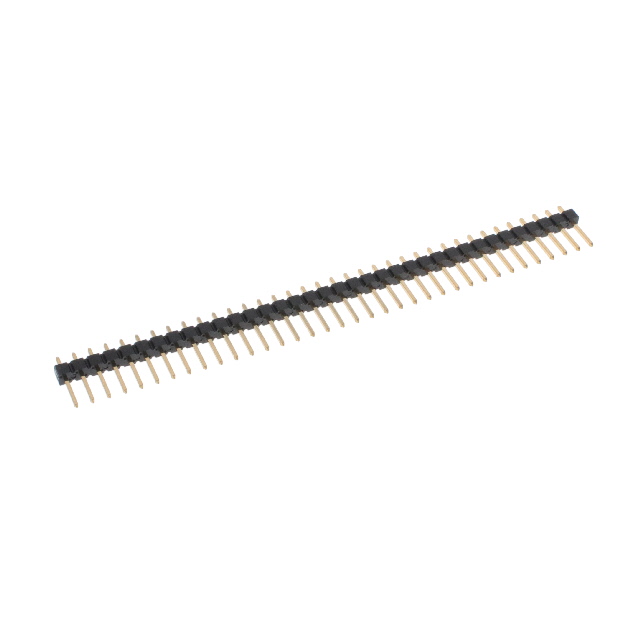

- Description：CONN HEADER VERT 36POS 2.54MM
- Series：EconoStik™ 10129378
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：36
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：0.420" (10.67mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129378-936002BLF is a vertical header connector belonging to the ECONOSTIK series. It features a single row of 36 positions with a 0.100 inch (2.54mm) mating pitch. Designed for through-hole termination, this connector utilizes a board-to-wire style configuration. The component is rated for operation within a temperature range of -55°C to 105°C and is currently in active production status.
Feature Summary
- Vertical surface mount orientation for direct PCB integration
- Single-row architecture supporting high-density signal routing
- Through-hole solder termination for robust mechanical fixation
Applications
- Industrial control system interconnects
- General-purpose electronic equipment wiring
- Signal distribution boards
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compliance with updated material specifications or plating revisions. Confirm that the procurement channel sources directly from authorized distributors to guarantee authenticity and traceability of the ECONOSTIK series components.
Selection Notes
Select this component when a vertical, single-row header with a standard 2.54mm pitch is required for through-hole assembly. Ensure the design accommodates the specific height and footprint constraints associated with the ECONOSTIK series geometry before finalizing the board layout.
Part Context
This connector belongs to the ECONOSTIK product line by Amphenol ICC (FCI), a division of Amphenol Corporation. The series is engineered for reliable interconnection solutions in commercial and industrial electronics markets, providing standardized pin configurations for versatile circuit board applications.
Replacement Considerations
Compatible substitutes include other 36-position, 2.54mm pitch vertical headers from the same manufacturer family, such as 10129378-936001BLF, provided mechanical dimensions and electrical ratings match the original design requirements.
