Product Detailed Parameters

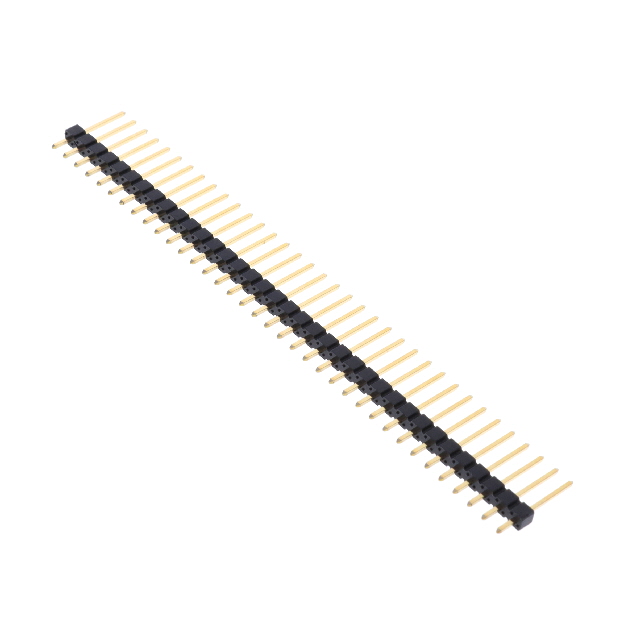

- Description：CONN HEADER VERT 36POS 2.54MM
- Series：EconoStik™ 10129378
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：36
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.538" (13.67mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129378-936003BLF is a vertical pin header from the EconoStik series. It features a single row with 36 positions and a 2.54 mm (0.100 inch) pitch. Designed for through-hole termination, this connector supports board-to-board or board-to-cable applications. The housing is black, and the contacts are made of copper alloy. It is rated for general electronic interconnection tasks within standard operating temperature ranges.
Feature Summary
- Vertical surface-mount style termination for reliable PCB integration
- Cuttable design allows for flexible position configuration
- Single-row architecture simplifies routing and assembly
Applications
- General-purpose board-to-board interconnections
- Board-to-cable wiring harness connections
- Industrial control system signal distribution
Procurement Notes
Verify that the specific suffix BLF matches the required housing color and material specifications for your design. Confirm that the through-hole footprint aligns with your PCB manufacturing capabilities. Ensure compatibility with standard reflow or wave soldering profiles as defined in the official datasheet to maintain joint integrity.
Selection Notes
Choose this component when a single-row, high-density vertical header is required. The cuttable feature provides flexibility in managing unused pins. Verify that the 2.54 mm pitch meets your mating connector requirements. Consider the mechanical stability of the vertical orientation for your specific enclosure constraints.
Part Context
This part belongs to the EconoStik family, which focuses on cost-effective power and signal solutions. The 10129378 series offers robust performance for commercial electronics. It complements other headers in the lineup by providing a standard pitch option for versatile connectivity needs across various industrial and consumer applications.
Replacement Considerations
Direct substitutes include other 36-position, 2.54mm pitch vertical headers from the same manufacturer. Ensure any replacement maintains the same through-hole termination method and single-row configuration to preserve mechanical fit.
