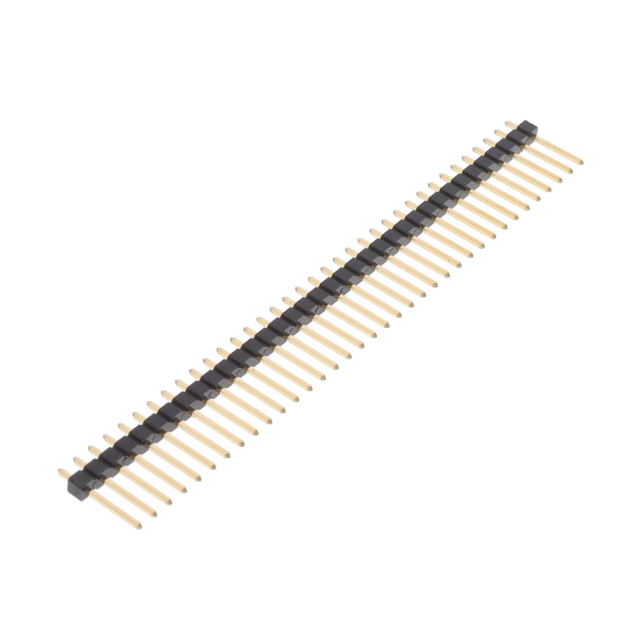

10129378-936004BLF

$0.59

Description：CONN HEADER VERT 36POS 2.54MM
Series：EconoStik™ 10129378
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:0473a2c5d7e1 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 36POS 2.54MM
Series：EconoStik™ 10129378
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：36
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.318" (8.08mm)
Contact Length - Post：0.090" (2.29mm)
Overall Contact Length：0.508" (12.90mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129378-936004BLF

Overview

The Amphenol ICC (FCI) part number 10129378-936004BLF is a single-row EconoStik pin header connector designed for board-to-board interconnections. It features a 2.54 mm pitch and provides 36 contact positions. The component utilizes a through-hole mounting style with straight termination, ensuring secure attachment to the printed circuit board. Constructed from thermoplastic housing with brass contacts, it supports reliable signal transmission in industrial control and test equipment environments.

Feature Summary

Supports up to 50 mating cycles for durable repeated connections
EconoStik design ensures stable board-to-board integration
Straight through-hole termination facilitates standard PCB assembly

Applications

Industrial control systems
Test and measurement equipment
General-purpose board-to-board interconnects

Procurement Notes

Verify the specific suffix BLF against the manufacturer's current datasheet to confirm plating and material specifications. Ensure the ordering quantity aligns with the manufacturer's standard packaging requirements. Confirm that the straight through-hole form factor matches the target PCB layout constraints before finalizing the purchase order.

Selection Notes

Select this component when a single-row configuration with a 2.54 mm pitch is required for board-to-board applications. It is suitable for designs needing robust mechanical retention via through-hole mounting. Consider the 50-cycle mating durability limit when evaluating long-term serviceability requirements for the target electronic assembly.

Part Context

This connector belongs to the EconoStik series by Amphenol ICC (FCI), formerly FCI. The series focuses on providing cost-effective yet reliable interconnection solutions for commercial electronics. As part of the broader Amphenol portfolio, these components support high-volume manufacturing needs while maintaining consistent electrical performance standards across various industrial sectors.
