10129379-902001BLF

Overview

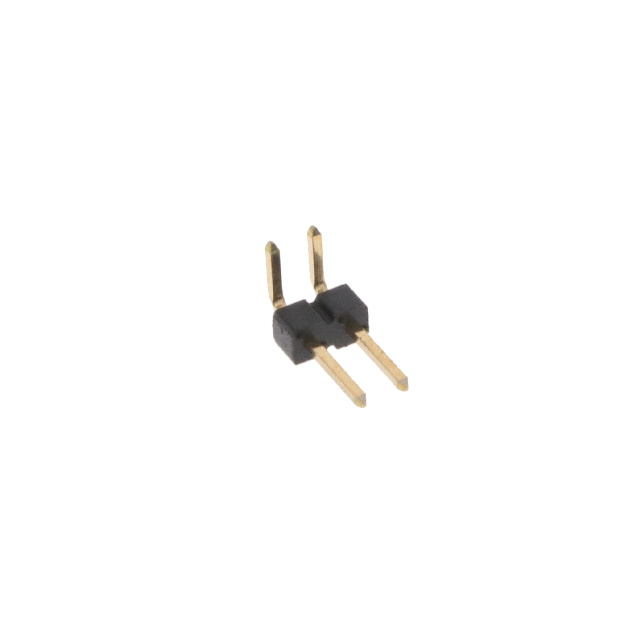

The Amphenol ICC (FCI) part number 10129379-902001BLF is a single-row, right-angle through-hole header from the Econostik series. It features two positions with a 2.54 mm pitch and utilizes gold contact plating for reliable signal transmission. Designed for board-to-board or cable connections, this component offers a compact profile suitable for space-constrained electronic assemblies.

Feature Summary

• Right-angle through-hole mounting configuration
• Single-row layout with cuttable design
• Gold-plated contacts for durability

Applications

• Board-to-board interconnects
• Cable-to-board connections
• General-purpose electronic assemblies

Procurement Notes

Verify the specific suffix BLF to confirm RoHS compliance status and material specifications. Ensure the ordering quantity matches the manufacturer's standard packaging requirements. Confirm that the right-angle orientation aligns with the PCB layout constraints before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, single-row header is required for vertical mating. The 2.54 mm pitch ensures compatibility with standard wire and board spacing. Consider the right-angle form factor to optimize board depth and facilitate easier cable routing in dense enclosures.

Part Context

This connector belongs to the Econostik family, known for cost-effective solutions in commercial electronics. As an Amphenol ICC product, it integrates established reliability standards with modern manufacturing processes, serving as a fundamental interconnect solution for various industrial and consumer applications.

Replacement Considerations

Compatible substitutes include other single-row, 2-position, 2.54mm pitch headers from the same series. Verify mechanical dimensions and pinout alignment when cross-referencing alternative part numbers to ensure functional equivalence.
