10129379-902002BLF

Overview

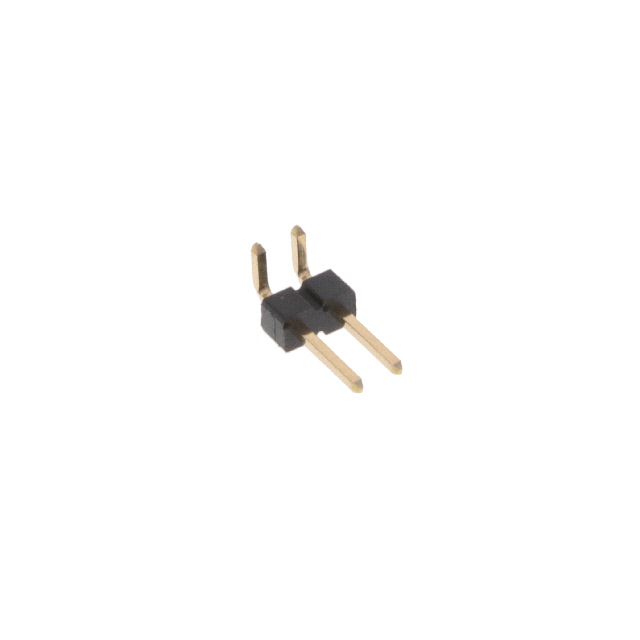

The Amphenol ICC (FCI) 10129379-902002BLF is a right-angle board-to-board header connector from the Econostik series. It features a 2.54 mm pitch with two contacts arranged in a single row. The component utilizes through-hole termination for secure PCB mounting and supports up to 3 A current rating. Constructed with copper alloy contacts, it meets UL 94 V-0 flammability standards. Designed for durability, the connector sustains up to 50 mating cycles while maintaining signal integrity.

Feature Summary

• Right-angle design facilitates compact vertical board-to-board interconnections
• Through-hole termination ensures robust mechanical stability on printed circuit boards
• Copper alloy contacts provide reliable electrical conductivity and corrosion resistance

Applications

• Industrial control systems
• Medical equipment
• Telecommunications infrastructure

Procurement Notes

Verify the complete part number including suffixes to ensure correct orientation and contact plating specifications. Confirm that the required current rating of 3 A aligns with system power requirements. Check for RoHS compliance status if environmental regulations apply. Ensure the right-angle configuration matches the mechanical layout constraints of the target assembly.

Selection Notes

Select this component when a low-profile, cost-effective solution for general-purpose interconnects is required. The 2.54 mm pitch offers compatibility with standard PCB spacing. Consider the 50-cycle mating limit for applications requiring frequent disconnection. Evaluate the right-angle form factor against available vertical space in the enclosure design.

Part Context

This connector belongs to the Amphenol FCI Econostik family, which provides economical solutions for various electronic markets. The brand was acquired by Amphenol in 2016, integrating FCI's extensive portfolio into the Amphenol ICC division. This series focuses on delivering reliable performance for industrial and commercial applications without complex engineering requirements.

Replacement Considerations

Direct substitutes within the same Econostik series may share identical mechanical dimensions but differ in contact material or plating. Verify pin count, pitch, and termination style before substitution. Alternative manufacturers offering 2.54 mm right-angle headers must match the footprint and height specifications to ensure proper fit.
