Product Detailed Parameters
- Description：CONN HEADER R/A 2POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：2
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

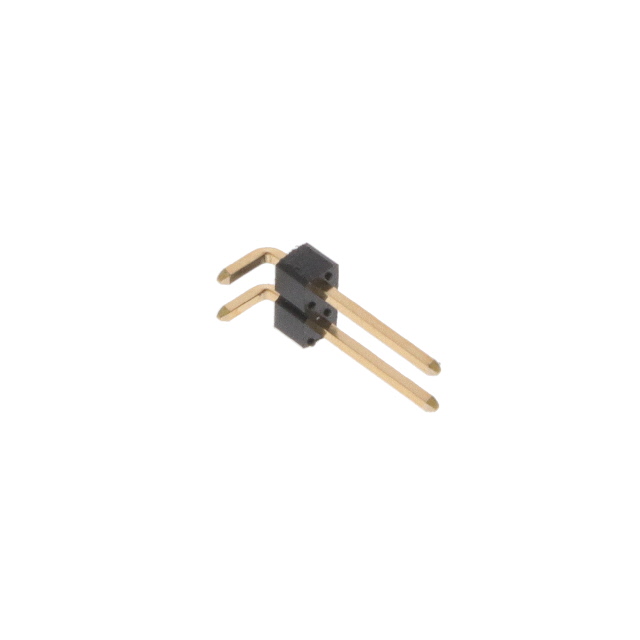

The Amphenol ICC (FCI) part number 10129379-902004BLF is a rectangular connector header designed for through-hole mounting. It features a right-angle configuration with two positions and a pitch of 0.100 inches (2.54mm). The component utilizes male pin contacts suitable for board-to-board or cable applications. Electrical ratings include a current capacity of 3A and a voltage rating of 110VDC. The housing is constructed from black material with a UL94 V-0 flammability rating, ensuring compliance with safety standards for electronic assemblies.
Feature Summary
- Right-angle through-hole mounting design for space-efficient PCB integration
- Male pin contact style compatible with standard header sockets
- Black insulation housing rated UL94 V-0 for fire safety
Applications
- General electronic equipment interconnections
- Board-to-board signal transmission
- Cable-to-board wiring harnesses
Procurement Notes
Verify the exact suffix against official Amphenol documentation to confirm plating specifications and packaging details. Ensure compatibility with mating receptacles regarding pitch and row configuration. Check for any recent product lifecycle changes or obsolescence notices directly from the manufacturer before finalizing procurement plans.
Selection Notes
Select this component when a low-profile, right-angle header is required for 2-position connections. The 2.54mm pitch ensures broad compatibility with standard PCB footprints. Consider the 3A current rating for power distribution needs within general electronics. Verify mechanical clearance for the right-angle orientation during layout.
Part Context
This component belongs to the ECONOSTIK series by Amphenol ICC (FCI), known for cost-effective connectivity solutions. The series provides reliable electrical connections for various consumer and industrial applications. As an FCI product, it leverages established engineering standards for durability and signal integrity in compact form factors.
Replacement Considerations
Direct substitutes must match the 2-position count, 2.54mm pitch, right-angle orientation, and through-hole termination. Verify that alternative headers maintain identical current and voltage ratings. Cross-reference pin dimensions and housing locking mechanisms to ensure mechanical interchangeability without redesigning the PCB footprint.
