Product Detailed Parameters
- Description：CONN HEADER R/A 4POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：4
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

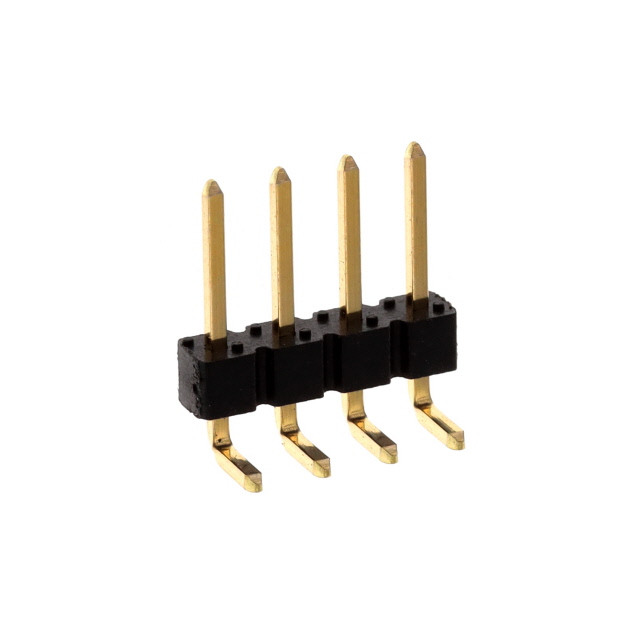

The Amphenol ICC (FCI) part number 10129379-904001BLF is a rectangular connector header belonging to the standard 10129379 series. It features a single row of four positions with a 2.54 mm pitch, designed for through-hole right-angle mounting. The contacts are rated for 3A current and 110VDC voltage. The mating surface utilizes gold plating to ensure reliable signal transmission. This component is intended for wave soldering assembly processes.
Feature Summary
- Single-row header configuration with cuttable design
- Right-angle through-hole termination for board edge mounting
- Gold-plated contact surfaces for enhanced conductivity
Applications
- General electronic circuit interconnections
- Industrial control system wiring
- Consumer electronics internal connections
Procurement Notes
Verify the specific suffix BLF against official manufacturer documentation to confirm material composition and compliance status. Ensure that the ordering information matches the exact pin count and row configuration required for the target application. Cross-reference the datasheet for any recent product change notices or environmental compliance updates prior to procurement.
Selection Notes
Select this component when a low-profile, right-angle header is required for single-row applications. The 2.54 mm spacing is compatible with standard PCB layouts. Confirm that the 3A current rating meets the electrical requirements of the connected circuits. Consider the cuttable feature if custom lengths are needed for specific assembly constraints.
Part Context
This connector belongs to the widely used 10129379 series of rectangular headers from Amphenol ICC. These components are characterized by their robust construction and standardized dimensions. The series offers various pin counts and configurations to support diverse connectivity needs in modern electronic assemblies.
Replacement Considerations
Compatible substitutes include other single-row, 4-position, 2.54mm pitch headers from Amphenol ICC such as 10129379-908001BLF, provided the physical footprint and electrical ratings remain consistent with the original design specifications.
