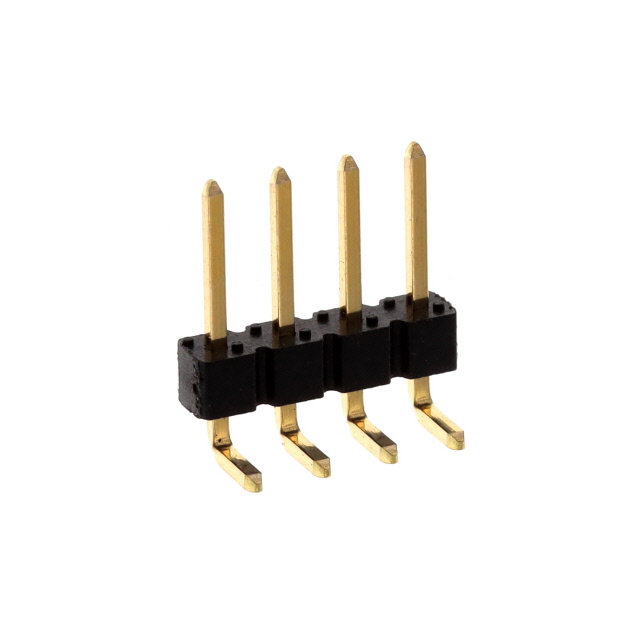

10129379-904002BLF

$0.10

Description：CONN HEADER R/A 4POS 2.54MM
Series：EconoStik™ 10129379
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:74a8f2f573ca Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 4POS 2.54MM
Series：EconoStik™ 10129379
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：4
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：0.090" (2.29mm)
Overall Contact Length：-
Insulation Height：0.095" (2.41mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129379-904002BLF

Overview

The Amphenol ICC (FCI) 10129379-904002BLF is a rectangular header connector from the Econostik series. It features a right-angle, through-hole termination design with four positions and a 0.100" (2.54mm) pitch. The unshrouded male pins are constructed from copper alloy with gold plating. The housing utilizes thermoplastic insulation rated UL94 V-0 for flammability. Operating temperatures range from -55°C to 105°C.

Feature Summary

Right-angle through-hole mounting configuration
Unshrouded male pin contact arrangement
Gold-plated copper alloy contacts
Thermoplastic UL94 V-0 insulated housing

Applications

General electronic circuit interconnections
Board-to-board signal routing
Industrial control system assemblies

Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm RoHS compliance status as specific variants may differ. Ensure storage conditions maintain moisture sensitivity level integrity prior to soldering. Validate pin count and pitch specifications match target PCB footprint requirements.

Selection Notes

Select this model for applications requiring right-angle board edge connections. The 4-position layout suits low-pin-count signal lines. Gold plating ensures reliable conductivity in standard environments. Verify thermal limits align with operational temperature ranges.

Part Context

This component belongs to the FCI Econostik series, designed for cost-effective interconnect solutions. The series emphasizes reliability in general-purpose electronics. The specific part number denotes a 4-position variant within the broader rectangular connector family.
