Product Detailed Parameters
- Description：CONN HEADER R/A 4POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：4
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

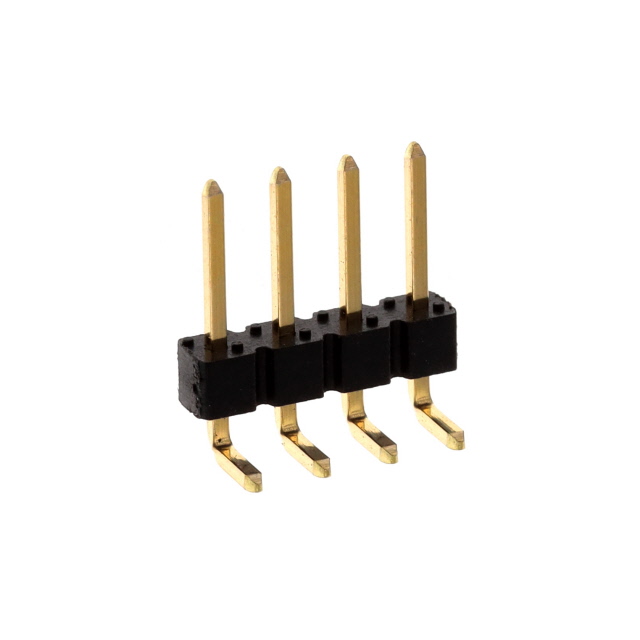

The Amphenol ICC (FCI) part number 10129379-904003BLF is a rectangular connector belonging to the FCI EconoStik series. It is designed as a header with male pins, featuring a right-angle through-hole mounting style. The connector provides four positions with a pitch spacing of 2.54mm (0.100 inches). It utilizes copper alloy contacts with gold plating on the mating surface to ensure reliable electrical performance. This component is suitable for general electronic interconnection applications requiring durable and cost-effective solutions.
Feature Summary
- Right-angle through-hole mounting configuration for efficient board space utilization
- Gold-plated copper alloy contacts ensuring stable signal transmission
- EconoStik series design offering robust mechanical stability
Applications
- General electronic equipment interconnections
- Industrial control systems
- Consumer electronics assemblies
Procurement Notes
Verify the specific ordering suffix to confirm contact finish and packaging details. Ensure compatibility with mating receptacles regarding pin count and pitch. Check RoHS compliance status against current regulatory requirements before finalizing procurement decisions.
Selection Notes
Select this component when a low-profile, right-angle header is required for PCB assembly. The 2.54mm pitch is standard for many legacy and modern designs. Consider the through-hole termination method for superior mechanical strength compared to surface mount alternatives in high-vibration environments.
Part Context
This connector is part of the broader Amphenol ICC portfolio, which includes various interconnect solutions for data communication and industrial markets. The EconoStik line focuses on providing reliable connectivity with simplified manufacturing processes. It serves as a fundamental building block for circuit board-to-cable or board-to-board connections.
Replacement Considerations
Direct substitutes must match the 4-position count, 2.54mm pitch, and right-angle orientation. Verify that alternative headers maintain identical contact material and plating thickness to ensure equivalent electrical characteristics and corrosion resistance.
