Product Detailed Parameters

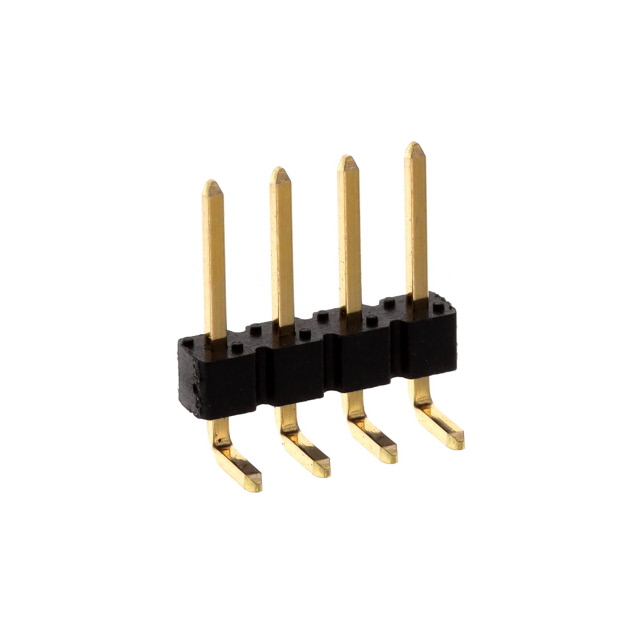

- Description：CONN HEADER R/A 4POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：4
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129379-904004BLF is a right-angle header connector from the Verio series. It features 4 positions with a 0.100 inch (2.54mm) pitch. The connector utilizes through-hole termination and is designed for board-to-board applications. Contact plating is gold, ensuring reliable signal transmission. The housing material meets UL 94 V-0 flammability standards. Operating temperature ranges from -55°C to 85°C. This component is packaged in tape and reel format for automated assembly processes.
Feature Summary
- Right-angle design facilitates compact board stacking
- Gold contact plating ensures corrosion resistance
- Through-hole mounting provides mechanical stability
Applications
- Industrial control systems
- Telecommunications equipment
- Consumer electronics assemblies
Procurement Notes
Verify the specific ordering suffix BLF confirms the required packaging and plating specifications. Confirm RoHS compliance status as per current manufacturer documentation. Ensure compatibility with mating receptacles regarding pin count and pitch dimensions before procurement.
Selection Notes
Select this component when a low-pin-count, right-angle interconnect is required. The 2.54mm pitch suits standard PCB layouts. Verify that the through-hole footprint matches the target board design. Consider the operating temperature range for environmental suitability.
Part Context
This connector belongs to the Verio family of high-reliability interconnects. The series is known for robust performance in demanding environments. Amphenol ICC designs these components for efficient signal integrity and power delivery in dense electronic assemblies.
Replacement Considerations
Direct substitutes must match the 4-position count, 2.54mm pitch, and right-angle orientation. Verify identical housing material and UL rating. Cross-reference mating connector compatibility to ensure proper interface alignment.
