Product Detailed Parameters

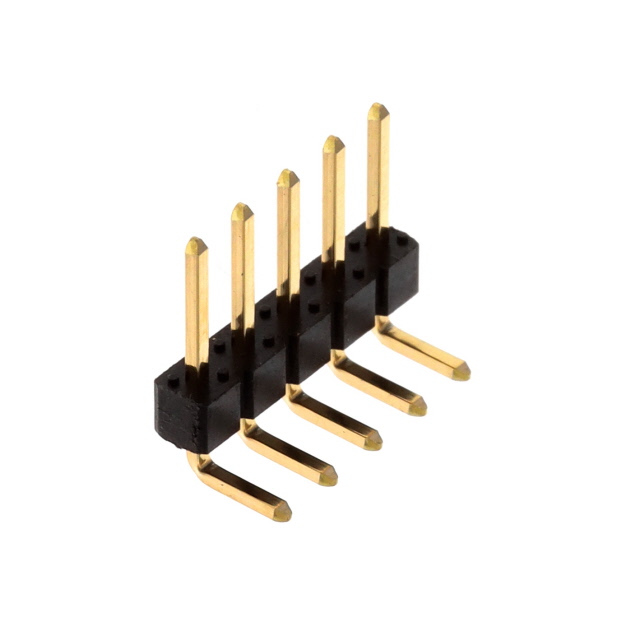

- Description：CONN HEADER R/A 5POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：5
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129379-905001BLF is a five-position connector header designed for through-hole mounting. It features right-angle termination and a 2.54mm pitch, providing reliable signal transmission in compact electronic assemblies. The component utilizes copper alloy contacts with thermoplastic insulation, ensuring structural integrity across an operating temperature range of -55°C to 105°C. Rated for UL94 V-0 material flammability, this header supports standard PCB layouts while maintaining consistent electrical performance.
Feature Summary
- Right-angle termination facilitates efficient board space utilization
- Through-hole mounting ensures secure mechanical attachment
- Thermoplastic insulation provides stable dielectric properties
Applications
- General-purpose electronic circuit interconnections
- Industrial control system signal routing
- Consumer electronics internal wiring
Procurement Notes
Verify the complete part number including the suffix BLF to ensure correct packaging specifications. Confirm that the required quantity aligns with bulk packaging standards rather than individual reel counts. Cross-reference the manufacturer datasheet for specific handling instructions regarding moisture sensitivity and soldering profiles to maintain contact reliability during assembly processes.
Selection Notes
Select this component when right-angle orientation is necessary for dense PCB layouts. The 2.54mm pitch matches standard through-hole spacing requirements. Ensure the application environment remains within the specified -55°C to 105°C operational limits. Verify that the copper alloy contact material meets the current carrying requirements for the specific circuit design.
Part Context
This header belongs to the broader family of rectangular connectors manufactured by Amphenol ICC (FCI). These components are engineered for high-reliability applications in information technology and commercial electronics markets. The series emphasizes signal integrity and robust mechanical performance under extended operational periods.
Replacement Considerations
Direct substitutes must match the 5-position count, 2.54mm pitch, right-angle configuration, and through-hole termination method. Verify compatibility with existing PCB footprints and housing dimensions before integration.
