Product Detailed Parameters

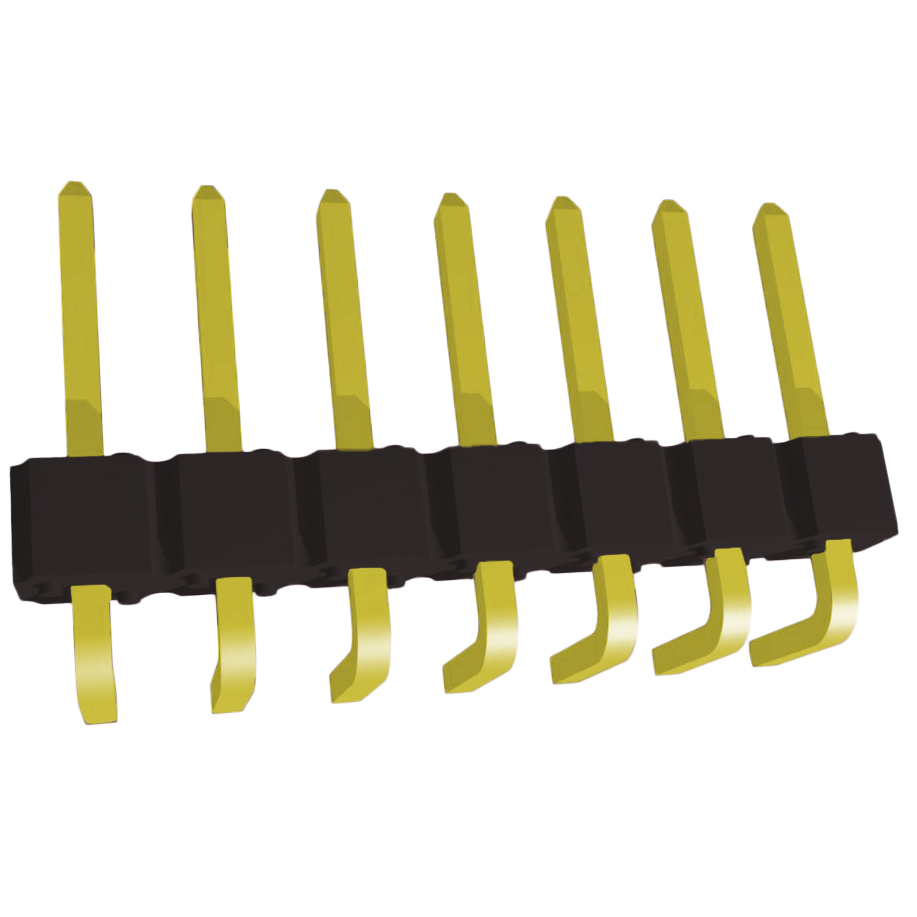

- Description：CONN HEADER R/A 7POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：7
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129379-907001BLF is a right-angle header connector belonging to the ECONOSTIK series. It features a single row with seven positions and a 2.54mm pitch. The connector utilizes through-hole termination for secure board mounting. Contact surfaces are finished with tin plating over copper alloy substrates, providing reliable electrical conductivity. The insulation material is thermoplastic, rated for UL 94 V-0 flammability. Operating temperatures range from -55°C to 105°C. This component is designed for surface mount applications requiring robust signal transmission.
Feature Summary
- Right-angle design facilitates compact circuit board layouts
- Through-hole termination ensures mechanical stability
- ECONOSTIK series provides cost-effective connectivity solutions
Applications
- General purpose electronic equipment
- Industrial control systems
- Consumer electronics assemblies
Procurement Notes
Verify current availability status as distribution channels may vary. Confirm that the suffix BLF indicates lead-free compliance where applicable. Ensure mating connectors match the 2.54mm pitch and single-row configuration. Check for any specific handling requirements due to the right-angle form factor during assembly processes.
Selection Notes
Select this component when a low-profile, right-angle header is required for single-row signal connections. The 2.54mm pitch is standard for general-purpose interconnects. Consider the through-hole mounting method for applications needing high mechanical strength. Verify thermal ratings against operational environments exceeding -55°C or 105°C.
Part Context
This connector belongs to the ECONOSTIK family, which focuses on economical and reliable interconnect solutions. Amphenol ICC (FCI) produces these components for broad industrial and commercial use. The series emphasizes ease of assembly and consistent performance across various electronic applications.
Replacement Considerations
Direct substitutes must match the 7-position count, 2.54mm pitch, right-angle orientation, and through-hole termination. Verify contact material and plating specifications to ensure equivalent electrical performance. Consult manufacturer cross-reference lists for approved alternative part numbers.
