Product Detailed Parameters
- Description：CONN HEADER R/A 8POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

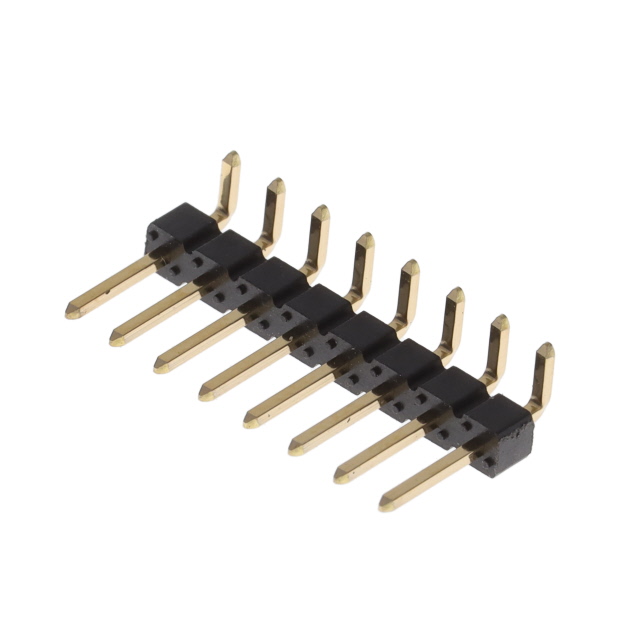

The Amphenol ICC (FCI) part number 10129379-908002BLF is an EconoStik™ series rectangular connector header. It features a right-angle, through-hole mounting style with 8 positions and a 0.100 inch (2.54mm) pitch. The component utilizes male pins for board-to-board interconnection. Contact finishes are available in gold or tin variants depending on specific suffixes, supporting up to 50 mating cycles. This design is engineered for industrial control and test applications requiring reliable signal transmission.
Feature Summary
- Right-angle through-hole mounting configuration for secure board attachment
- EconoStik™ series construction designed for durability and reliability
- Supports up to 50 mating cycles for repeated connection requirements
- Optimized for signal integrity in industrial and test environments
Applications
- Industrial control systems
- Test equipment interfaces
- Board-to-board interconnections
Procurement Notes
Verify the exact contact finish specification against the full datasheet, as suffix variations may indicate different plating options such as gold or tin. Confirm that the right-angle orientation matches the PCB layout requirements. Ensure the 8-position count aligns with the circuit design. Check for any specific RoHS compliance status if required by the assembly process. Validate mechanical dimensions against the official drawing before procurement.
Selection Notes
Select this component when a low-profile, cost-effective header is needed for non-high-frequency signal applications. The 2.54mm pitch is standard for general-purpose interconnects. Consider the 50-cycle rating for maintenance-heavy equipment. Ensure the right-angle form factor fits within the enclosure constraints. Compare against other EconoStik variants if higher cycle life or different pin counts are required.
Part Context
This connector belongs to the Amphenol ICC (FCI) EconoStik™ family, which focuses on providing economical yet robust interconnect solutions. The brand, formerly FCI, is now part of Amphenol ICC, leveraging extensive experience in connector technology. This specific model represents a standard rectangular header solution widely used in general electronics manufacturing.
Replacement Considerations
Direct substitutes include other 8-position, 2.54mm pitch right-angle headers from the same EconoStik line, such as 10129379-908004BLF if row configuration differs. Verify mechanical footprint compatibility and electrical ratings before substituting with generic equivalents.
