Product Detailed Parameters

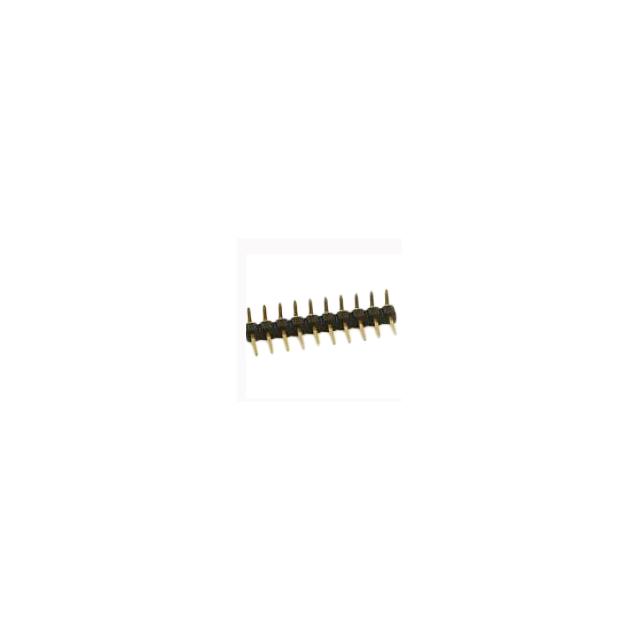

- Description：CONN HEADER R/A 8POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129379-908003BLF is a rectangular connector header designed for surface-mount applications. It features an 8-position configuration with a 2.54mm pitch, arranged in a single row. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. Rated for 3A current and compatible with standard PCB mounting processes, this component utilizes right-angle termination for efficient board space utilization.
Feature Summary
- Gold-plated contact finish ensures durable electrical connections and resistance to oxidation.
- Right-angle surface mount design facilitates compact circuit board layouts.
- Single-row header configuration supports straightforward wiring and assembly.
Applications
- General-purpose electronic equipment interconnections
- Industrial control system modules
- Consumer electronics internal circuitry
Procurement Notes
Verify the specific suffix BLF against official manufacturer documentation to confirm plating thickness and material specifications. Ensure compatibility with automated pick-and-place equipment due to the surface-mount package type. Cross-reference the 8-position count and 2.54mm pitch with target PCB footprint designs prior to ordering.
Selection Notes
Select this component when a low-profile, right-angle header is required for high-reliability signal paths. The gold finish makes it suitable for environments where corrosion resistance is critical. Evaluate the 3A current rating against peak load requirements to ensure safe operational margins within the system architecture.
Part Context
This connector belongs to the broad portfolio of Amphenol ICC (FCI), formerly Framatome Connecte International. The company specializes in providing robust interconnect solutions for data communication, industrial, and consumer markets. This specific series emphasizes cost-effective connectivity with standardized dimensions for widespread industry adoption.
Replacement Considerations
Direct substitutes must match the 8-position count, 2.54mm pitch, right-angle orientation, and gold contact finish. Verify that alternative manufacturers offer identical housing materials and UL flammability ratings to maintain compliance with existing safety certifications.
