Product Detailed Parameters
- Description：CONN HEADER R/A 8POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

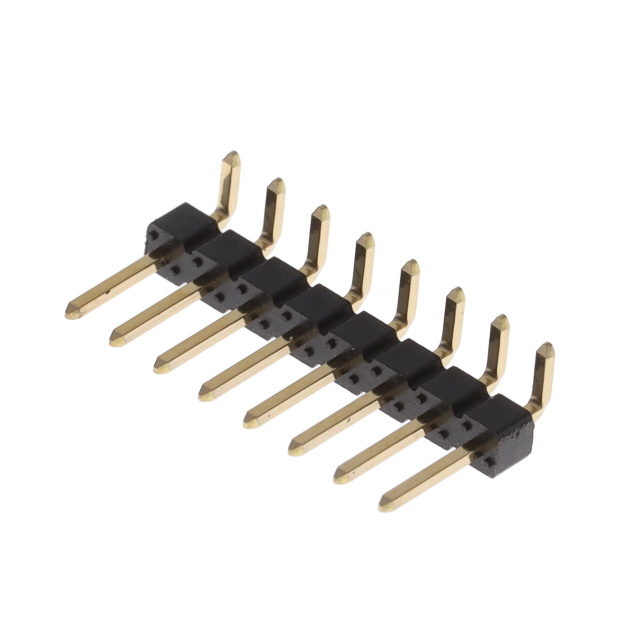

The Amphenol ICC (FCI) part number 10129379-908004BLF is a rectangular connector header designed for through-hole mounting. It features a right-angle configuration with eight positions arranged in a single row. The contact pitch is standardized at 0.100 inches (2.54mm), ensuring compatibility with common PCB layouts. The mating contacts are finished with gold plating to provide reliable electrical conductivity and corrosion resistance. This component is lead-free and complies with RoHS standards, making it suitable for environmentally conscious manufacturing processes.
Feature Summary
- Right-angle header design facilitates compact board-to-board or cable connections.
- Gold-plated contacts ensure stable signal transmission and durability.
- Through-hole termination provides secure mechanical attachment to the circuit board.
Applications
- General electronic equipment interconnections
- Industrial control system wiring
- Consumer electronics assembly
Procurement Notes
Verify the specific suffix BLF against the manufacturer's latest documentation to confirm compliance with current environmental directives and material specifications. Ensure that the right-angle orientation and single-row configuration match the intended PCB footprint requirements before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, right-angle connection is required for standard 2.54mm pitch applications. Consider the single-row layout for space-constrained designs where vertical stacking is unnecessary. Confirm that the through-hole mounting method aligns with the assembly process capabilities of the production facility.
Part Context
This connector belongs to the broader family of rectangular headers produced by Amphenol ICC (FCI). These components are widely utilized in various industries requiring robust and reliable interconnect solutions. The specific model represents a standard offering within their portfolio, balancing performance with cost-effectiveness for mass-produced electronic devices.
Replacement Considerations
Direct substitutes must maintain the 8-position count, 2.54mm pitch, right-angle orientation, and through-hole termination. Verify that any alternative part matches the gold contact finish and RoHS compliance status to ensure functional equivalence without redesigning the PCB footprint.
