10129379-909001BLF

Overview

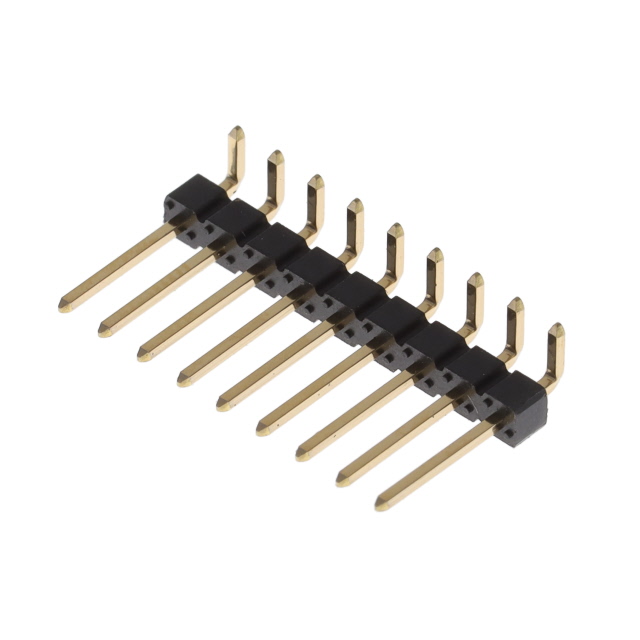

The Amphenol ICC (FCI) part number 10129379-909001BLF is a right-angle through-hole header from the ECONOSTIK series. It features 9 positions with a 0.100 inch (2.54mm) pitch. The connector utilizes copper alloy contacts and thermoplastic insulation rated UL94 V-0 for flammability. It supports a current rating of 3A and operates within a temperature range of -55°C to +105°C.

Feature Summary

• Right-angle through-hole mounting configuration
• ECONOSTIK series design for wire housing applications
• Thermoplastic insulation material construction

Applications

• Board-to-board interconnections
• Wire harness assemblies
• General electronic equipment connections

Procurement Notes

Verify the specific pin count and orientation against the schematic, as suffixes define physical attributes. Confirm that the operating temperature range meets the environmental requirements of the target application. Ensure the current rating aligns with the circuit load specifications before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, right-angle connection is required for signal or power distribution. The ECONOSTIK series offers reliable performance for general-purpose applications. Consider the 3A current rating and thermal limits during the design phase to ensure long-term stability in the intended operational environment.

Part Context

This component belongs to the ECONOSTIK series by Amphenol ICC (FCI), formerly Framatome Connectors International. The brand provides diverse interconnect solutions for data processing and communication markets. This specific header type supports standard PCB layouts requiring angled termination for space-constrained designs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
