Product Detailed Parameters
- Description：CONN HEADER R/A 9POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：9
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

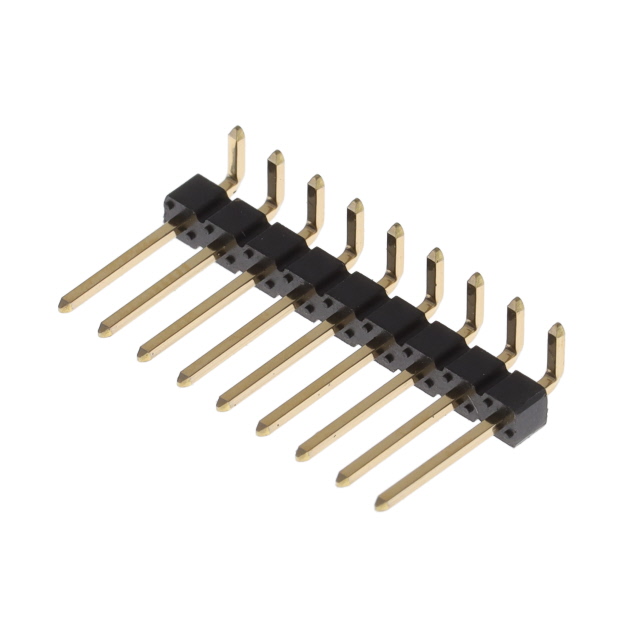

The Amphenol ICC (FCI) 10129379-909004BLF is a right-angle pin header connector designed for board-to-board applications. It features a 2.54 mm pitch and contains 9 positions arranged in a single row. The component utilizes through-hole solder termination with gold-plated brass contacts, rated for 3 A current and 110 VDC voltage. Operating temperatures range from -55°C to +105°C, supported by UL 94 V-0 flammability ratings.
Feature Summary
- Right-angle through-hole mounting configuration
- Gold-plated contact finish for reliable signal transmission
- Cuttable header design for flexible circuit layout
Applications
- Board-to-board interconnections
- Data communication equipment
- Industrial control systems
Procurement Notes
Verify RoHS compliance and lead-free status against specific manufacturing batches. Confirm that the single-row 9-position configuration matches the target PCB footprint. Ensure soldering parameters align with the specified thermal requirements for through-hole assembly.
Selection Notes
Select this model when a low-profile, right-angle connection is required for high-density layouts. The 2.54 mm pitch ensures compatibility with standard PCB spacing. Verify that the 3 A current rating meets the electrical load requirements of the specific circuit application.
Part Context
This component belongs to the EconoStik series of headers produced by Amphenol FCI. The series emphasizes cost-effective solutions for general electronic interconnects while maintaining durability and signal integrity standards suitable for commercial and industrial environments.
Replacement Considerations
Compatible substitutes include other 9-pin, 2.54 mm pitch right-angle headers from the same manufacturer family, such as the 10129379-908004BLF variant, provided mechanical dimensions and electrical ratings remain identical.
