Product Detailed Parameters
- Description：CONN HEADER R/A 10POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：10
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

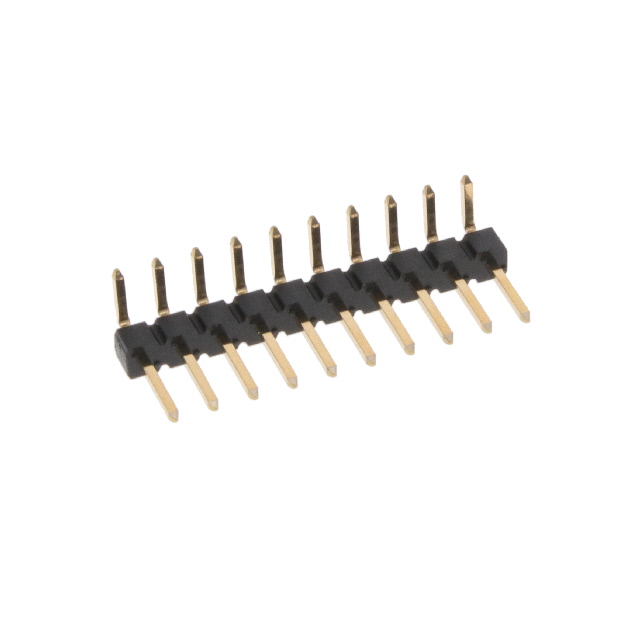

The Amphenol ICC (FCI) part number 10129379-910001BLF is a connector header designed for through-hole mounting with right-angle termination. It features 10 positions arranged in a single row with a 0.100 inch (2.54mm) pitch. The contacts are copper alloy, rated for 3A current and UL 94 V-0 flammability. Operating temperature ranges from -55°C to 105°C.
Feature Summary
- Right-angle through-hole header configuration
- Copper alloy contact material
- UL 94 V-0 flammability rating
Applications
- General electronic interconnects
- Industrial control systems
- Consumer electronics assemblies
Procurement Notes
Verify the specific suffix 'BLF' against official Amphenol documentation to confirm lead-free compliance status. Ensure the right-angle orientation matches PCB layout requirements. Confirm that the 10-position count aligns with circuit design needs before procurement.
Selection Notes
Select this component when a low-profile, right-angle connection is required for board-to-board or cable-to-board applications. The 2.54mm pitch ensures compatibility with standard breadboard and prototyping systems. Verify thermal resistance ratings against local heat dissipation conditions.
Part Context
This component belongs to the general-purpose header series manufactured by Amphenol ICC (FCI). It serves as a reliable interface point within larger connector ecosystems. The design prioritizes mechanical stability and electrical continuity for standard signal transmission tasks.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference pin counts and pitch dimensions carefully if considering alternative manufacturers.
