Product Detailed Parameters
- Description：CONN HEADER R/A 10POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：10
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

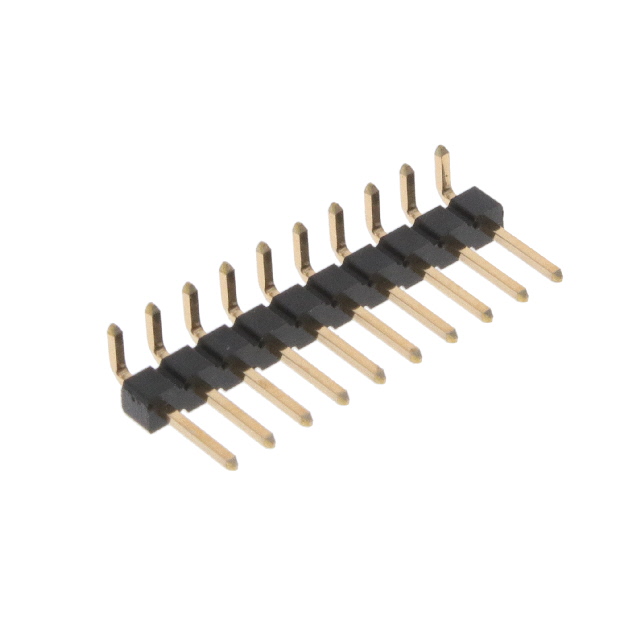

The Amphenol ICC (FCI) part number 10129379-910002BLF is a right-angle pin header connector belonging to the Econostik series. It features a single row of ten contacts with a 2.54 mm pitch, designed for through-hole termination. The component utilizes copper alloy contacts and is intended for board-to-board applications. Rated for general-purpose, industrial, medical, and telecommunications environments, it offers reliable signal transmission via solder termination.
Feature Summary
- Right-angle design facilitates compact board-to-board interconnections
- Econostik series construction ensures robust mechanical stability
- Through-hole solder termination provides secure electrical connections
Applications
- Industrial control systems
- Medical equipment assemblies
- Telecommunications infrastructure
Procurement Notes
Verify that the specific ordering suffix matches the required contact configuration and termination style. Confirm compliance with RoHS standards if environmental regulations apply to your assembly. Ensure the right-angle orientation aligns with your PCB layout constraints before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, single-row header is required for vertical mating. The 2.54 mm pitch suits standard digital signal routing. Consider the right-angle form factor for space-constrained designs where direct inline headers are impractical.
Part Context
This connector belongs to the Amphenol Econostik family, known for cost-effective, high-volume interconnect solutions. The 10129379 base series provides standardized dimensions compatible with various mating pins. It serves as a fundamental building block for internal electronic device wiring.
Replacement Considerations
Compatible substitutes include other single-row, 10-position, 2.54 mm pitch right-angle headers from manufacturers such as Molex or TE Connectivity. Verify identical pin spacing, current ratings, and mounting hole configurations to ensure mechanical interchangeability.
