Product Detailed Parameters

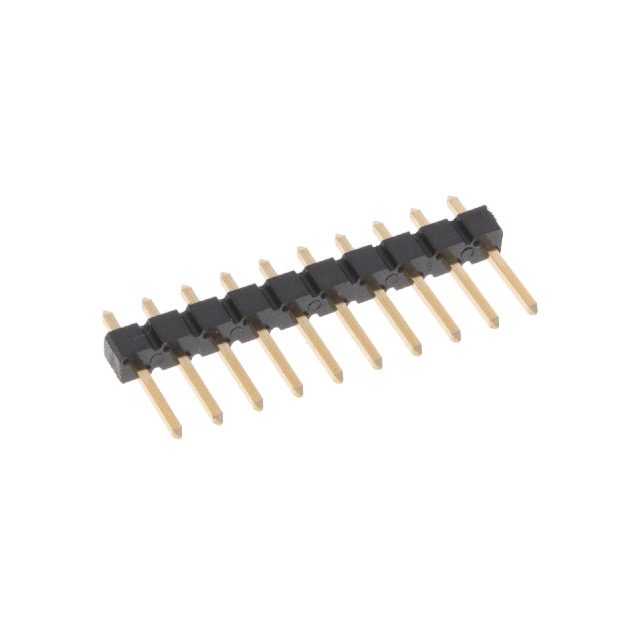

- Description：CONN HEADER R/A 10POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：10
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129379-910003BLF is a rectangular header connector belonging to the Verio™ series. It features a right-angle, through-hole mounting style with a 0.100 inch (2.54mm) contact spacing. The connector provides ten positions, configured as eight signal pins and two power pins. It utilizes copper alloy contacts with gold plating on the mating interface and tin plating on the tail for soldering. The housing is constructed from glass-reinforced liquid crystal polymer (LCP), rated UL94 V-0 for flammability. This component supports board rail locking mechanisms.
Feature Summary
- Right-angle through-hole termination for secure PCB integration
- Gold-plated mating contacts ensuring reliable signal transmission
- Board rail locking feature for mechanical stability during assembly
Applications
- Industrial control systems requiring robust interconnects
- Commercial electronic equipment with mixed signal and power needs
- General-purpose circuit boards utilizing standard 2.54mm spacing
Procurement Notes
Verify the specific suffix BLF against current manufacturer documentation to confirm compliance with RoHS3 standards and material specifications. Confirm that the pin configuration matches the required eight-signal and two-power layout for the target application. Ensure compatibility with the intended mating receptacle within the Verio™ ecosystem before finalizing procurement orders.
Selection Notes
Select this component when a right-angle, low-profile header is required for mixed signal and power routing on a single row. The 2.54mm pitch ensures broad compatibility with standard PCB footprints. Consider the IP67 rating of the broader Verio™ family if environmental sealing is necessary, though individual header verification is required. Evaluate thermal performance limits relative to the operating temperature range specified in the datasheet.
Part Context
This connector belongs to the Amphenol ICC (FCI) Verio™ product line, designed for high-density interconnect solutions in information technology and communication markets. The series emphasizes signal integrity and power management capabilities. As an FCI product acquired by Amphenol, it integrates advanced manufacturing techniques for improved reliability in commercial electronics applications.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify cross-compatibility with other Verio™ series headers based on pitch and locking mechanism requirements.
