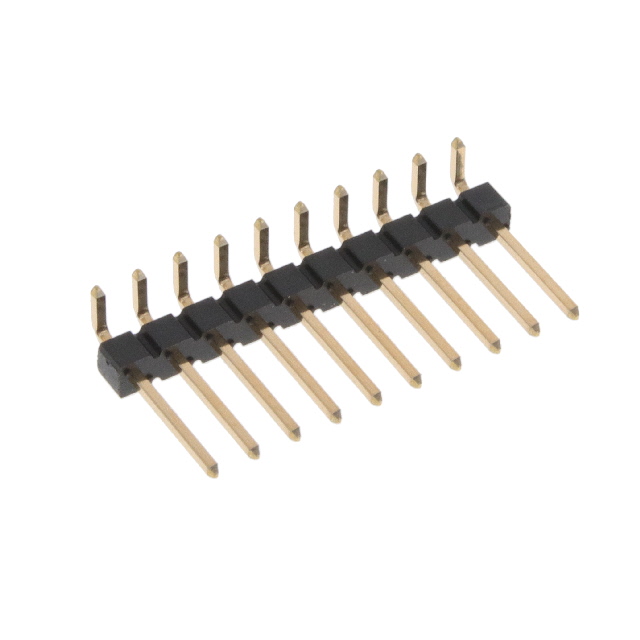

10129379-910004BLF

$0.23

Description：CONN HEADER R/A 10POS 2.54MM
Series：EconoStik™ 10129379
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:3d4a6648e196 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 10POS 2.54MM
Series：EconoStik™ 10129379
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：10
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.318" (8.08mm)
Contact Length - Post：0.090" (2.29mm)
Overall Contact Length：-
Insulation Height：0.095" (2.41mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129379-910004BLF

Overview

The Amphenol ICC (FCI) 10129379-910004BLF is a male header connector from the EconoStik series, designed for through-hole mounting at a right angle. It features a single row with 10 positions and a 0.100 inch (2.54 mm) pitch. The contacts are gold-plated copper alloy pins rated for 3 A current. The housing is black thermoplastic with UL 94 V-0 flammability rating, operating between -55°C and +105°C.

Feature Summary

Right-angle through-hole design for compact board integration
Gold-plated pin contacts ensuring reliable signal transmission
Thermoplastic housing with UL 94 V-0 flame retardancy

Applications

Board-to-board interconnections
Industrial control systems
Commercial electronic equipment

Procurement Notes

Verify the specific suffix '910004BLF' against official Amphenol documentation to confirm housing color and material specifications. Ensure compatibility with mating receptacles regarding pitch and contact configuration before procurement.

Selection Notes

Select this component for applications requiring right-angle, single-row headers with through-hole termination. Confirm that the 0.100 inch pitch and 10-position count align with the target PCB layout and mating connector requirements.

Part Context

This part belongs to the EconoStik family of connectors by Amphenol ICC (FCI). The series provides cost-effective solutions for general-purpose interconnects in information and communication markets, emphasizing signal integrity and power management capabilities.
