Product Detailed Parameters
- Description：CONN HEADER R/A 20POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：20
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

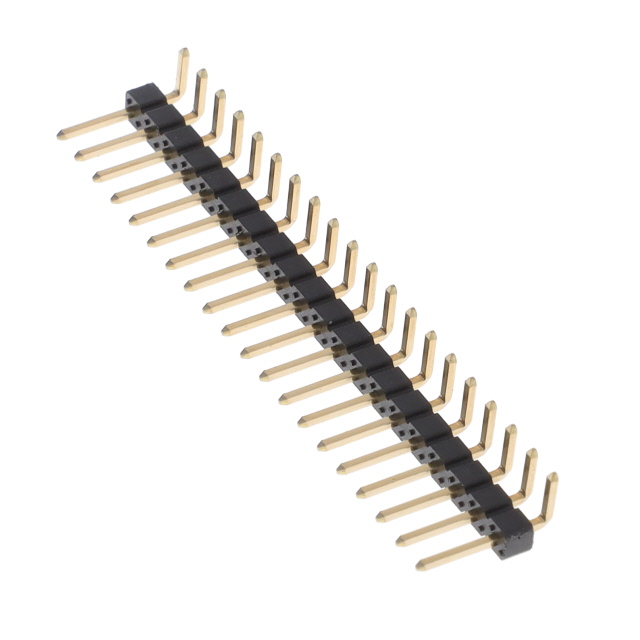

The Amphenol ICC (FCI) 10129379-920001BLF is a right-angle header connector from the Econostik series. It features 20 positions with a 2.54mm pitch, designed for through-hole termination. The component supports a voltage rating of 110VDC and a current rating of 3A. Operating temperature ranges from -55°C to +105°C. Contact finish thickness is 1.00µin (0.025µm).
Feature Summary
- Right-angle design for space-constrained board layouts.
- Cuttable construction allows for flexible circuit board sizing.
- Through-hole mounting ensures secure mechanical attachment.
Applications
- General purpose electronic circuits
- Industrial control systems
- Medical equipment interfaces
- Telecommunications hardware
Procurement Notes
Verify the specific suffix BLF against the manufacturer's latest datasheet to confirm insulation material and contact plating specifications. Ensure the ordering quantity matches the bulk packaging requirements defined in the official documentation. Confirm RoHS compliance status if required by project standards.
Selection Notes
Select this component when a low-profile, right-angle header is required for signal interconnection. The 2.54mm pitch is standard for general-purpose applications. Verify that the PCB layout accommodates the right-angle footprint and that the 3A current rating meets the circuit load requirements.
Part Context
This part belongs to the Econostik family of headers, which are widely used in various electronic assemblies. The base product number 10129379 indicates the core connector design, while the suffix defines specific variations in packaging and materials.
Replacement Considerations
Check for direct substitutes within the same Econostik series or compatible pin-compatible alternatives from other manufacturers. Ensure replacement parts match the 2.54mm pitch and right-angle orientation.
FAQ
Is this connector cuttable?
Yes, the Econostik header design allows for cutting to custom lengths.
What is the maximum operating temperature?
The maximum operating temperature is +105°C.
