Product Detailed Parameters
- Description：CONN HEADER R/A 20POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：20
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.090" (2.29mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

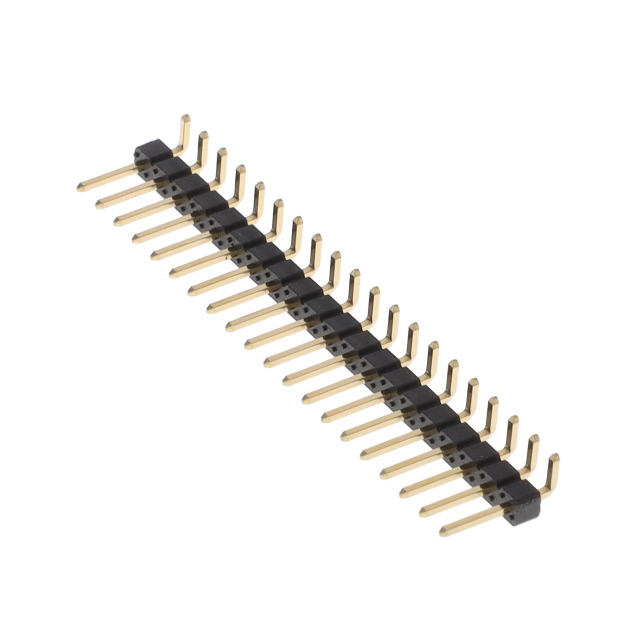

The Amphenol ICC (FCI) part number 10129379-920002BLF is a male pin header connector designed for board-to-board applications. It features a right-angle through-hole termination with a 2.54 mm pitch and contains 20 contacts arranged in a single row. The connector supports a voltage rating of 110 VDC and a current rating of 3A. It operates within a temperature range of -55°C to 105°C and utilizes UL94 V-0 rated black insulation.
Feature Summary
- Right-angle design facilitates compact vertical mounting on printed circuit boards.
- Through-hole termination ensures secure mechanical attachment during assembly.
- Shrouded housing structure provides alignment guidance and contact protection.
Applications
- Industrial control systems
- Consumer electronics assemblies
- General-purpose electronic equipment
Procurement Notes
Verify the exact pin count and pitch against the original design specifications before procurement. Confirm that the shrouded header configuration matches the mating socket requirements. Ensure the operating temperature range aligns with the environmental conditions of the target application to maintain reliability.
Selection Notes
Select this component when a low-cost, non-shielded interconnect solution is required for standard digital or power signals. The 2.54 mm pitch offers broad compatibility with existing PCB layouts. Consider the right-angle form factor if space constraints necessitate a perpendicular connection relative to the board surface.
Part Context
This component belongs to the EconoStik series, which represents a cost-effective line of unshrouded and shrouded pin headers from Amphenol FCI. These connectors are engineered for high-volume manufacturing and general commercial electronics markets where standard performance metrics are sufficient.
Replacement Considerations
No specific substitute part numbers are documented in the provided source material. Verify compatibility with any alternative suppliers by matching the 2.54 mm pitch, 20-pin count, and right-angle through-hole specifications precisely.
FAQ
What is the current rating for this connector?
The connector has a current rating of 3 Amps.
Does this connector feature a shrouded design?
Yes, the product description indicates a shrouded design for the header.
