Product Detailed Parameters

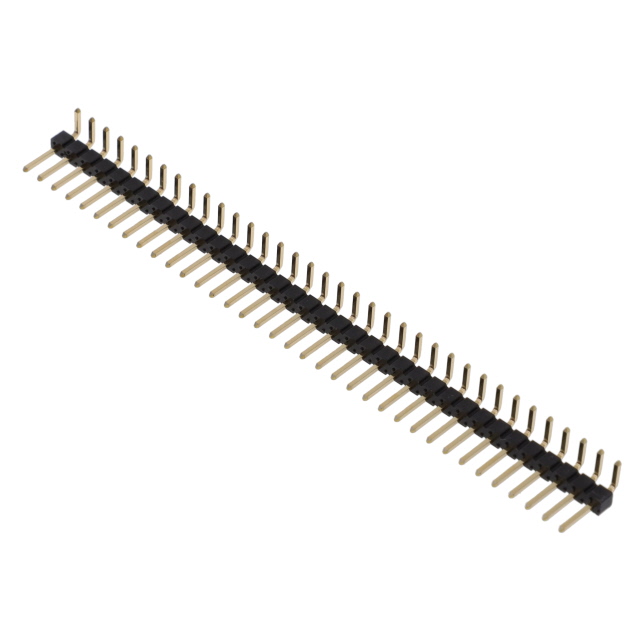

- Description：CONN HEADER R/A 36POS 2.54MM
- Series：EconoStik™ 10129379
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：36
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：-
- Insulation Height：0.095" (2.41mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview
The Amphenol ICC (FCI) part number 10129379-936001BLF is an Econostik series board-to-board header. It features a single row with 36 contacts and utilizes a 2.54 mm pitch. The connector employs right-angle through-hole termination for secure PCB mounting. Rated at 0.095 inches (2.41 mm) in height, it supports cuttable bulk configurations. The design facilitates reliable signal transmission in compact electronic assemblies requiring vertical interconnect solutions.
Feature Summary
- Right-angle through-hole termination ensures stable mechanical connection to printed circuit boards.
- Cuttable bulk format allows for flexible contact count adjustment during assembly.
- Single-row configuration optimizes space efficiency for dense board layouts.
Applications
- Board-to-board interconnections
- High-density electronic assemblies
- Consumer electronics manufacturing
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin count and termination style. Ensure compatibility with standard 2.54 mm spacing requirements. Confirm that the right-angle orientation matches the intended PCB layout constraints before finalizing procurement orders.
Selection Notes
Select this component when a single-row, right-angle header is required for board-to-board applications. The 2.54 mm pitch suits standard commercial electronics. Consider the cuttable feature if variable contact counts are needed. Verify height specifications against clearance requirements in the final assembly.
Part Context
This component belongs to the Amphenol ICC (FCI) Econostik series, known for cost-effective connectivity solutions. The series provides various header options for general-purpose electronic applications. This specific model represents a high-contact-count variant suitable for complex signal routing needs in modern devices.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official Amphenol ICC catalogs for cross-reference data if alternative sourcing is necessary.
FAQ
What is the contact pitch of this connector?
The connector has a standard 2.54 mm (0.100 inch) contact pitch.
Is this connector designed for surface mount or through-hole installation?
It is designed for through-hole termination into the printed circuit board.
