Product Detailed Parameters
- Description：CONN HEADER SMD 2POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：2
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

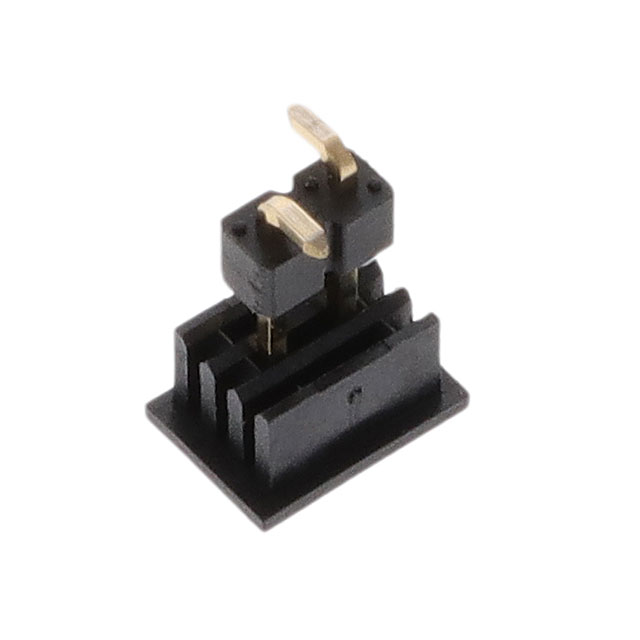

The Amphenol ICC (FCI) part number 10129380-902001ALF is a single-row, vertical surface-mount header from the EconoStik series. It features two positions with a 2.54 mm pitch and row spacing. The connector utilizes gold-plated brass contacts and a black thermoplastic housing. Rated for 3 A current and 110 VDC voltage, it operates within a temperature range of -55°C to +105°C. Designed for board-to-board applications, this component ensures reliable electrical connections in compact electronic assemblies.
Feature Summary
- Single-row vertical surface-mount design for space-constrained PCB layouts
- Gold-plated brass contacts ensure stable conductivity and corrosion resistance
- Thermoplastic housing provides UL 94 V-0 flammability rating
Applications
- General purpose electronics
- Industrial control systems
- Medical equipment
- Telecommunications infrastructure
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm exact pin count, plating thickness, and packaging configuration. Ensure compatibility with automated surface-mount assembly processes. Cross-reference the datasheet for precise reflow soldering profiles and storage conditions to maintain component integrity during procurement and handling.
Selection Notes
Select this component for applications requiring low-profile, single-row interconnects with standard 2.54 mm spacing. Verify that the 3 A current rating and 110 VDC voltage limit align with circuit requirements. Confirm that the vertical orientation and surface-mount termination method suit the target PCB design constraints and mechanical stability needs.
Part Context
This header belongs to the EconoStik family, characterized by cost-effective solutions for general-purpose interconnects. The series offers various row counts and mounting styles, including through-hole and surface-mount options. This specific model represents a minimal two-position variant suitable for simple signal or power distribution tasks in dense electronic environments.
Replacement Considerations
Direct substitutes must match the 2.54 mm pitch, single-row configuration, and surface-mount vertical orientation. Verify contact material and plating specifications to ensure equivalent performance. Consult manufacturer cross-reference lists for approved alternative part numbers with identical mechanical and electrical characteristics.
