Product Detailed Parameters
- Description：CONN HEADER SMD 2POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Bulk
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：2
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

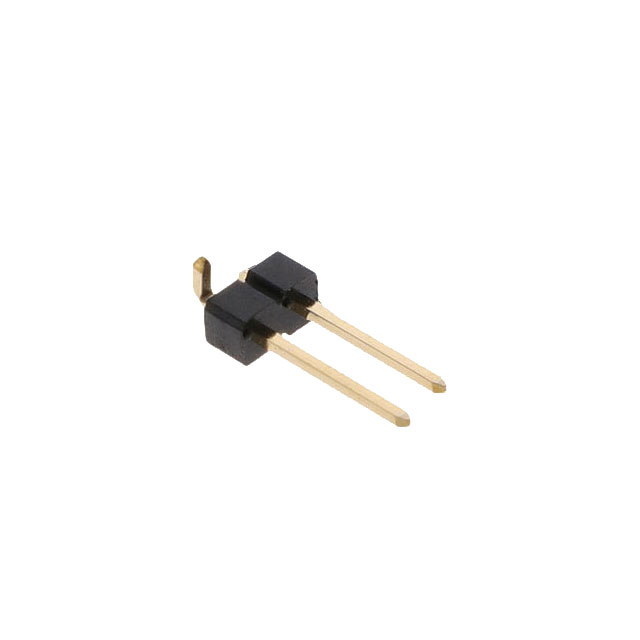

The Amphenol ICC (FCI) part number 10129380-902001BLF is a surface mount header connector from the EconoStik series. It features a two-position configuration with a 2.54 mm pitch. The contacts are gold-plated copper alloy, rated for 3A current and 110VDC voltage. Designed for general purpose, industrial, medical, and telecommunications applications, it operates within a temperature range of -55°C to +105°C.
Feature Summary
- Surface mount design for automated PCB assembly
- Gold contact finish ensures reliable signal integrity
- Thermoplastic insulation provides structural stability
Applications
- General purpose electronic circuits
- Industrial control systems
- Medical equipment interfaces
- Telecommunications hardware
Procurement Notes
Verify the specific suffix against official manufacturer documentation to confirm exact plating thickness and material specifications. Ensure compatibility with surface mount assembly processes and check for any recent product lifecycle changes or obsolescence notices directly from Amphenol ICC before finalizing procurement plans.
Selection Notes
Select this component when a low-profile, two-position surface mount header is required for 2.54 mm spacing applications. Confirm that the 3A current rating and 110VDC voltage limits meet the circuit requirements. Consider the operating temperature range and RoHS compliance status relative to the target industry standards.
Part Context
This connector belongs to the EconoStik series by Amphenol ICC (FCI), a brand acquired in 2016. The series focuses on cost-effective, durable interconnect solutions for data communication and industrial markets. FCI products are known for supporting signal integrity and power management in compact electronic designs.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify cross-compatibility with existing board layouts if considering alternative suppliers.
