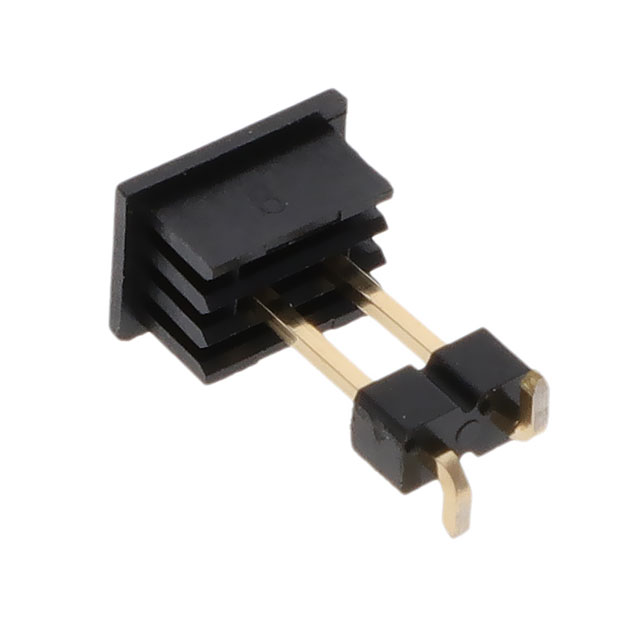

10129380-902002ALF

$0.14

Description：CONN HEADER SMD 2POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d697f938194b Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 2POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.318" (8.08mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129380-902002ALF

Overview

The Amphenol ICC (FCI) part number 10129380-902002ALF is a Surface Mount Header featuring two positions with a 2.54mm pitch. It utilizes EconoStik technology, supporting up to 50 mating cycles for board-to-board applications. The component operates within a temperature range of -55°C to 105°C and carries a current rating of 3A at 110VDC. Designed for industrial, medical, and telecommunications sectors, it ensures reliable signal transmission in general-purpose environments.

Feature Summary

Supports up to 50 mating cycles for durable performance
Designed for surface mount installation on printed circuit boards
Provides reliable electrical connections in industrial and medical settings

Applications

Industrial control systems
Test equipment interfaces
Medical device connections
Telecommunications hardware

Procurement Notes

Verify the specific suffix ALF confirms RoHS compliance status before finalizing orders. Confirm that the surface mount footprint matches the target PCB design requirements. Ensure the header orientation and pin configuration align with the intended board-to-board assembly specifications to prevent installation errors.

Selection Notes

Select this component when a low-cost, reliable header solution is required for general-purpose board-to-board connections. The 2.54mm pitch offers standard spacing compatibility. Consider the 3A current rating and operating temperature limits to ensure suitability for the specific environmental conditions of the target application.

Part Context

This connector belongs to the EconoStik series by Amphenol ICC (formerly FCI). The series focuses on cost-effective solutions without compromising essential reliability standards. It serves as a fundamental interconnection component within broader electronic assemblies, bridging separate circuit boards while maintaining signal integrity across various commercial and industrial platforms.
