Product Detailed Parameters
- Description：CONN HEADER SMD 3POS 2.54MM
- Series：EconoStik™ 10129380
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：1.00µin (0.025µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：110VDC
Download product information
Overview

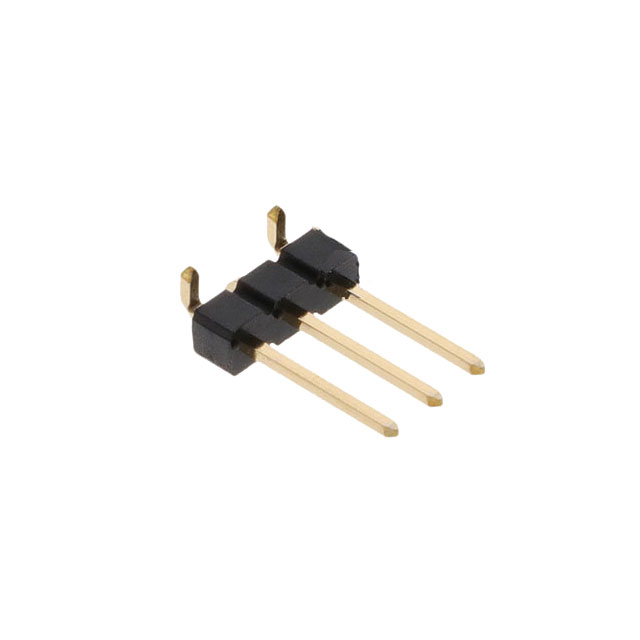

The Amphenol ICC (FCI) part number 10129380-903001ALF is a rectangular connector header from the EconoStik series. It features a surface mount straight mounting style with a 2.54mm pitch. The unit contains three positions in a single row configuration. This component utilizes male pin contacts designed for board-to-board interconnection applications.
Feature Summary
- Supports up to fifty mating cycles for reliable repeated connections
- Designed specifically for board-to-board interconnection requirements
- Utilizes a surface mount straight mounting style for PCB integration
Applications
- Industrial control systems
- Test equipment interfaces
- General board-to-board signal transmission
Procurement Notes
Verify the specific contact count and pitch against design requirements before procurement. Confirm that the surface mount orientation matches the assembly process. Ensure compatibility with the target printed circuit board layout and mating receptacle specifications to guarantee proper electrical connection.
Selection Notes
Select this component when a low-cost, single-row header is required for board-to-board links. The EconoStik series offers standard spacing suitable for general signal routing. Consider the limited mating cycle rating if frequent disconnection is anticipated during maintenance or testing phases.
Part Context
This connector belongs to the EconoStik family of headers produced by Amphenol ICC (FCI). The series focuses on providing cost-effective solutions for high-volume electronic assemblies. It serves as a standard interconnect option within the manufacturer's broader portfolio of rectangular connectors.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical footprint and electrical ratings carefully when evaluating alternative components from other manufacturers.
