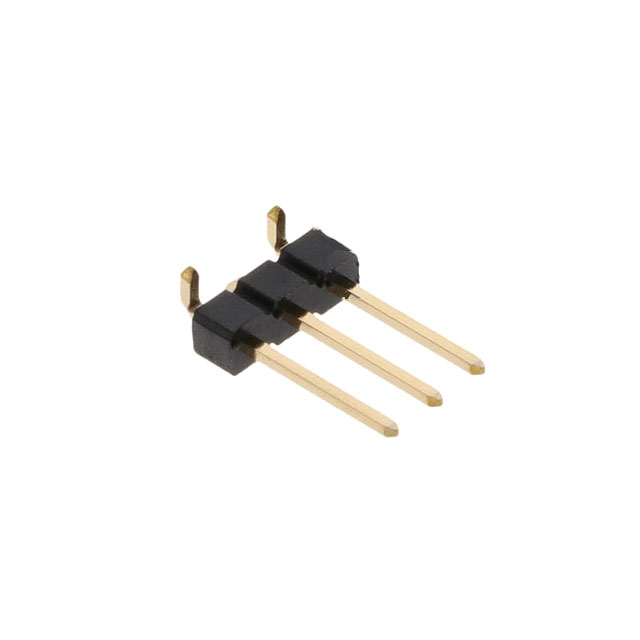

10129380-903001BLF

$0.09

Description：CONN HEADER SMD 3POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Bulk

SKU:c7707f69e794 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD 3POS 2.54MM
Series：EconoStik™ 10129380
Mfr：Amphenol ICC (FCI)
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：3
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：110VDC

Download product information

10129380-903001BLF

Overview

The Amphenol ICC (FCI) part number 10129380-903001BLF is a surface mount header connector from the EconoStik series. It features a single row with three positions and a 0.100 inch (2.54mm) pitch. The contacts are male pins designed for board-to-board applications. This component supports up to 50 mating cycles and utilizes a push-pull fastening mechanism.

Feature Summary

Surface mount construction for automated assembly
Push-pull fastening system for secure attachment
Male pin contact type for reliable signal transmission

Applications

Industrial control systems
Medical equipment
Telecommunications infrastructure

Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to ensure correct configuration. Confirm that the surface mount footprint matches the target PCB design. Check current availability status as lead times may vary. Ensure compliance with relevant environmental regulations for the intended deployment environment.

Selection Notes

Select this component for applications requiring low-profile board-to-board interconnects. The 2.54mm pitch offers standard spacing compatibility. Consider the 50-cycle durability rating for maintenance requirements. Evaluate the push-pull feature for ease of installation in constrained spaces.

Part Context

This connector belongs to the EconoStik family, which provides general-purpose interconnect solutions. The series is known for cost-effective designs suitable for high-volume production. Amphenol ICC integrates this line into broader connectivity portfolios for data communication and industrial markets.
